Description

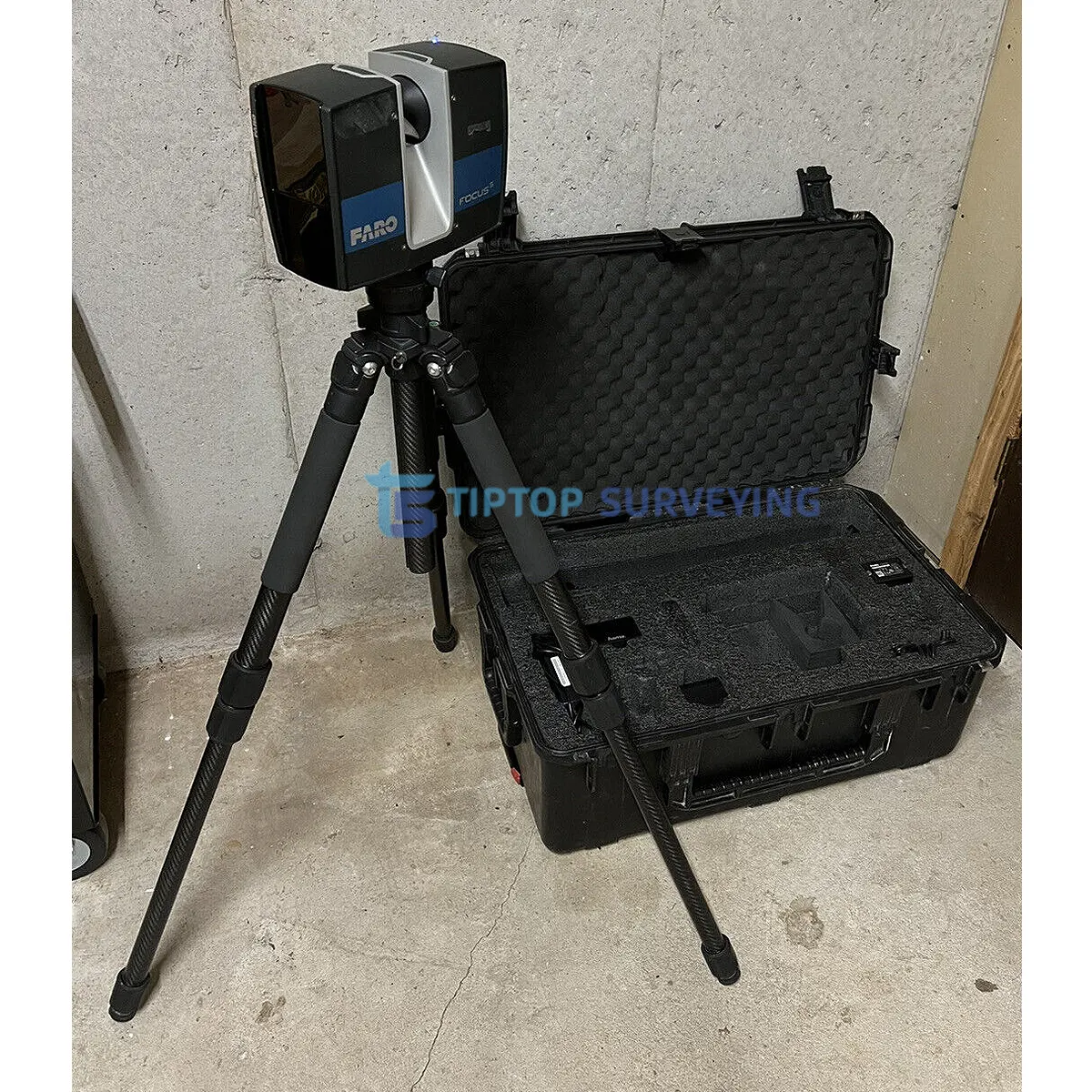

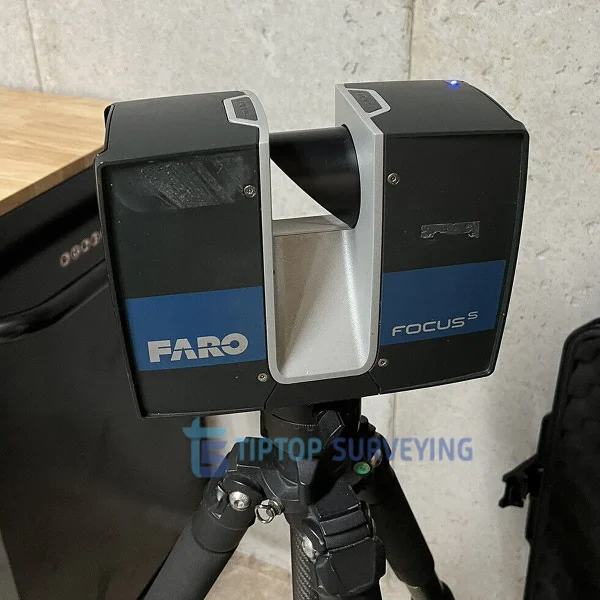

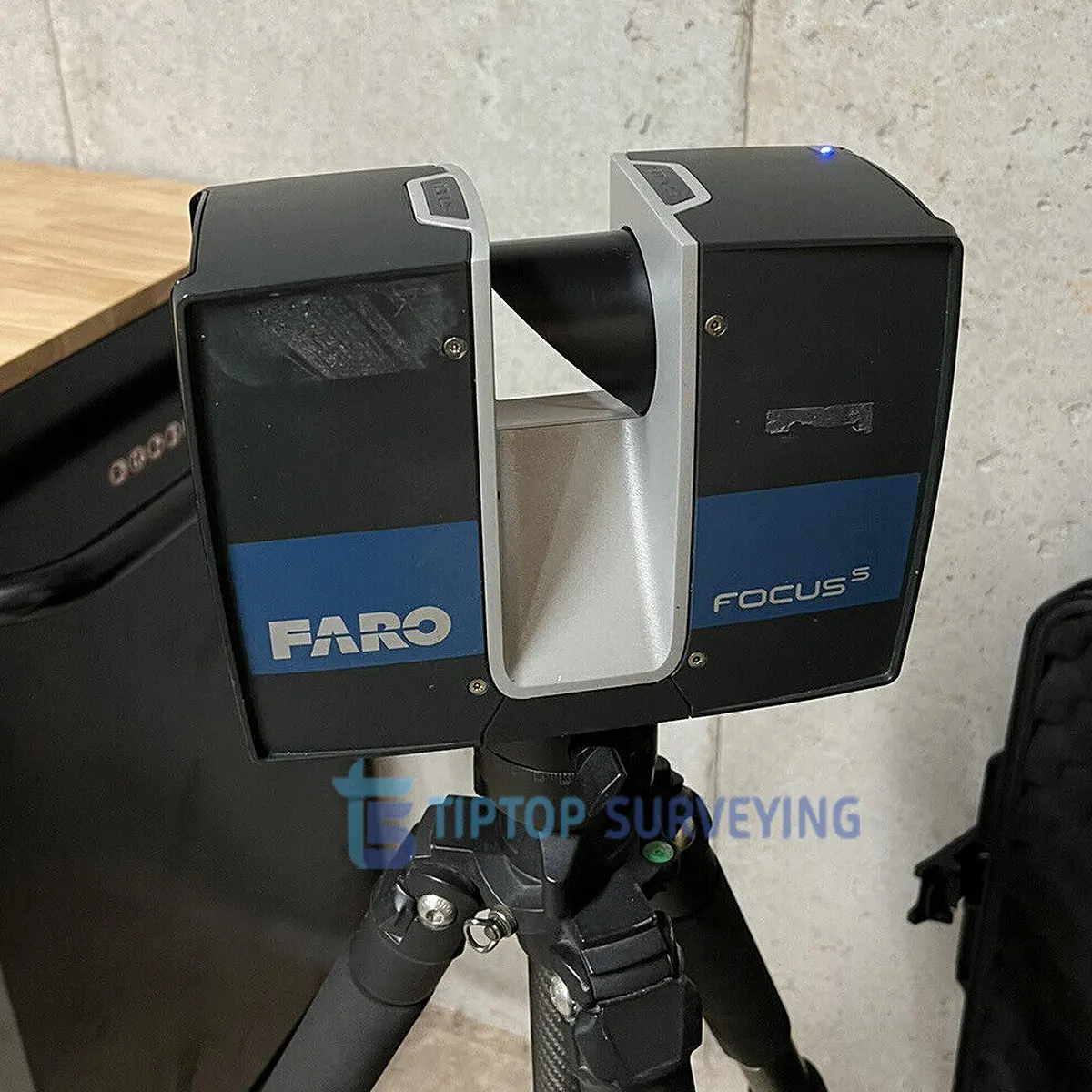

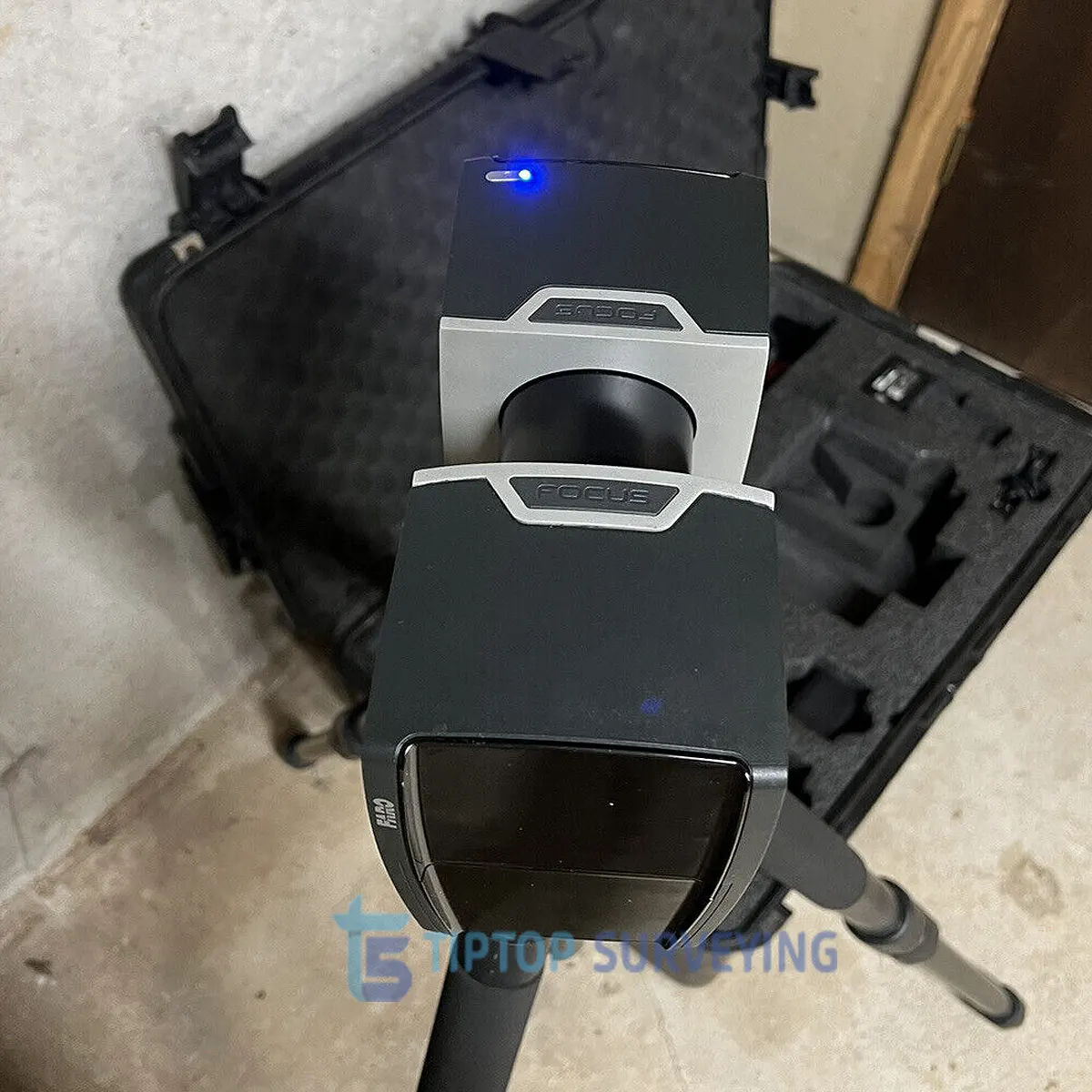

Used Faro Focus S350 3D Laser Scanner Package with Backpack and Accessories. This very mint Faro S350 was last calibrated in Sept 2022 and remains in perfect working condition. Faro Focus S350 Laser Scanner: with HDR Photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, Accessory Bay, IP Rating 54

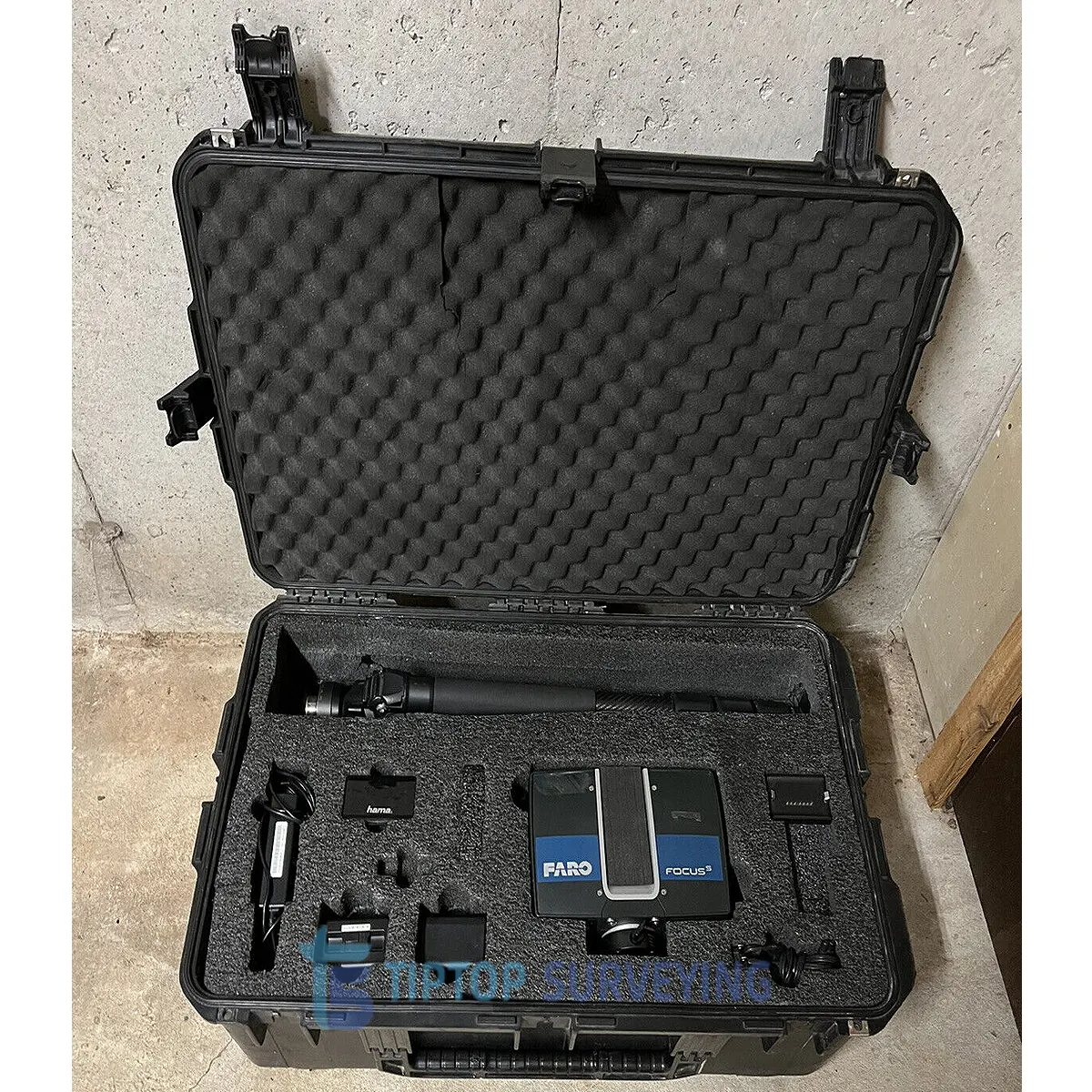

What’s Includes;

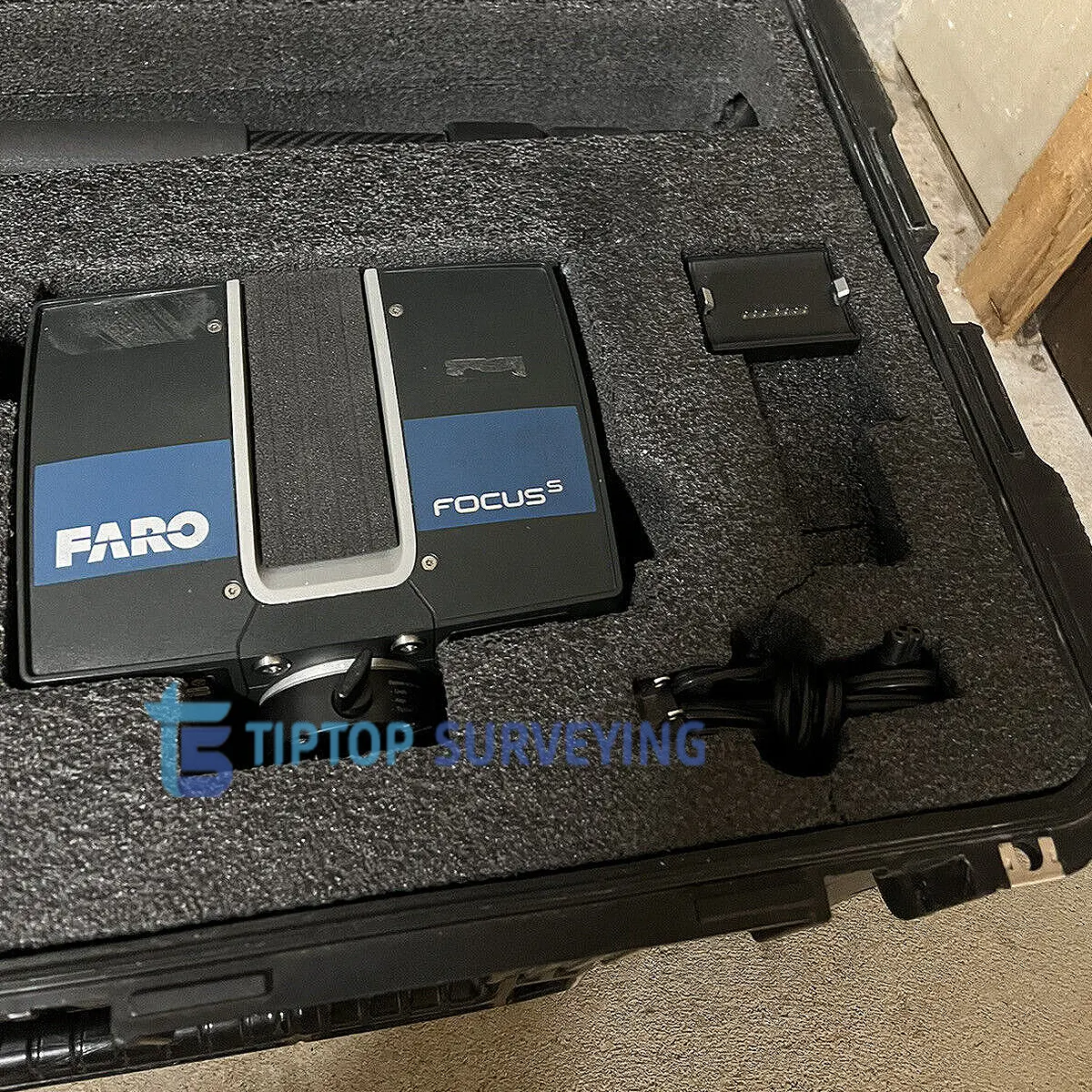

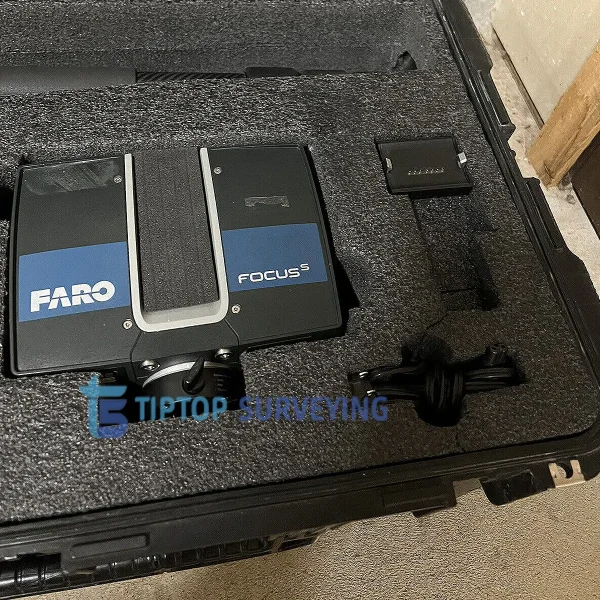

Faro Focus S350 Laser Scanner: with HDR Photography, GPS, Compass, Altimeter (Barometer), Dual-axis Compensator, WLAN, Accessory Bay, IP Rating 54, On-site Compensation Functionality, Calibration Certificate, Quick Start Guide, User’s manual, Rugged Transport Case

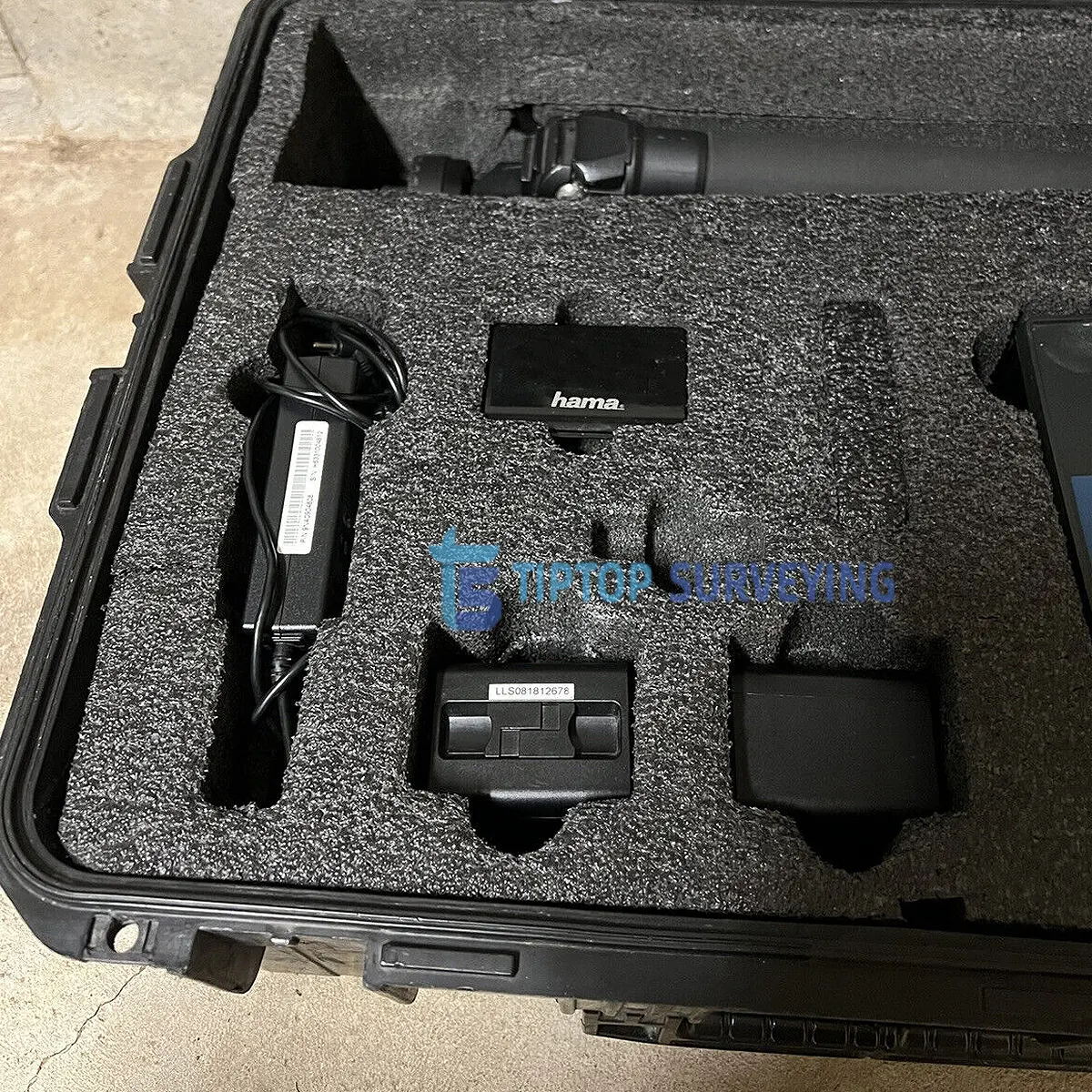

Battery Power Block, Battery Power Dock, 90W Power Supply
Optic Cleaning Fluid, Optic Cleaning Tissues
32GB SD Card, SD Card Reader, SD Card Cover
Allen Wrench
USB stick with SCENE software Licence
Tripod
Faro Focus S350 Combines all benefts from FARO’s well-known Focus3D Laser Scanners with today’s most innovative features to perform laser scanning in both indoor and outdoor environments – truly mobile, fast and reliable. The FARO FocusS 350 provides the next level of laser scanning for all applications in industries like Construction, BIM/CIM, Public Safety and Forensics.
BENEFITS
Scanning in rough environments while providing protection from dust, debris and water splashes
Confdent data quality through the on-site compensation
Reality-like scan data by increased distance accuracy and angular accuracy
Future-proof investment and expandability due to the integrated accessory bay

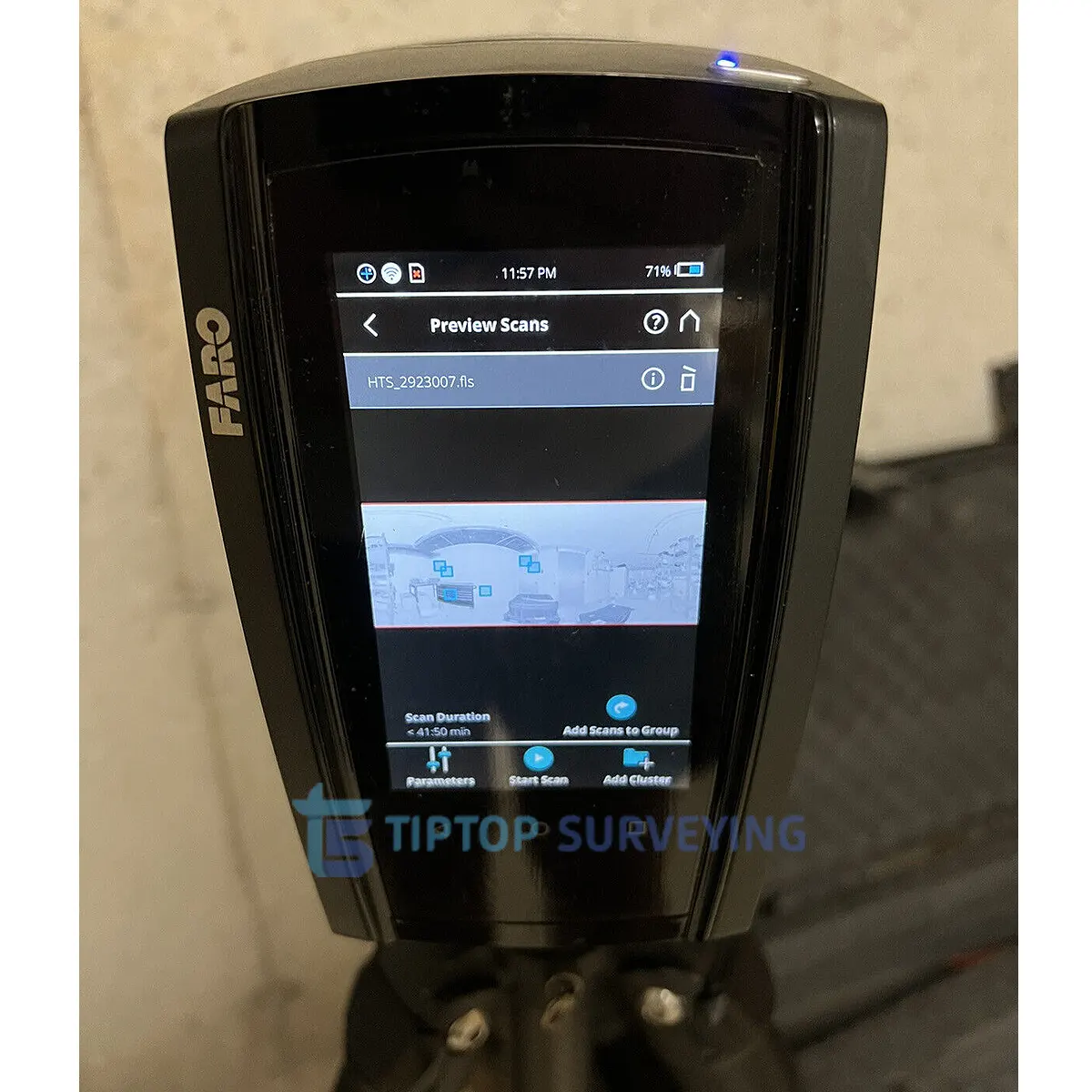

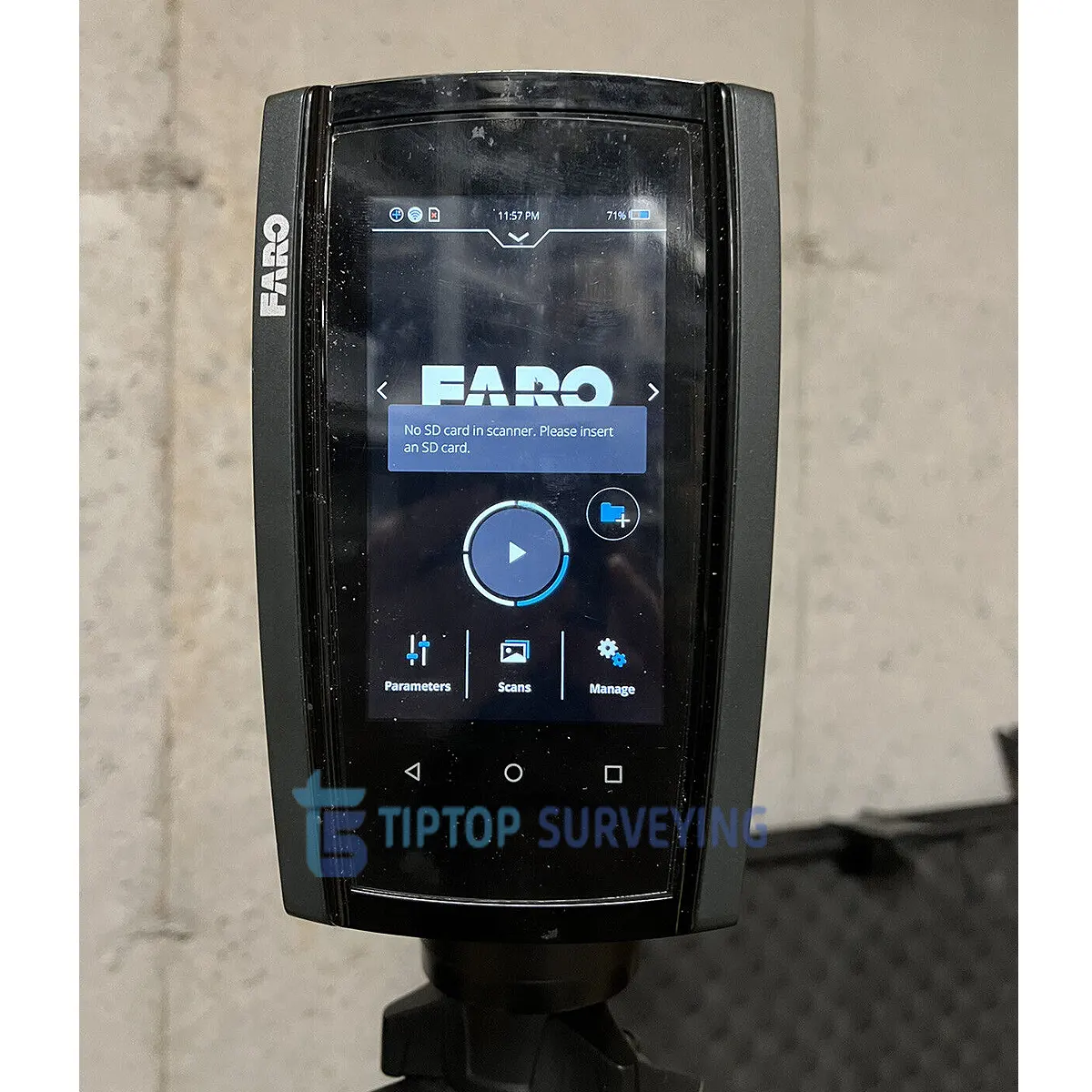

Easy handling of scanner control through its large and luminous touchscreen
FARO FOCUS S350 LASER SCANNER FEATURES
– ACCURACY The FocusS now captures environments with increased accuracy regarding distance, dualaxis compensator and angular measurement.
– TEMPERATURE Extended temperature range allows scanning in challenging environments
– ON-SITE COMPENSATION With the on-site compensation functionality users can verify and adjust the FocusS compensation on-site.
– IP RATING – CLASS 54 With the sealed design, the FocusS is certifed with the industry standard Ingress Protection (IP) Rating and classifed in class 54 against environmental infuences.
– HDR PHOTO OVERLAY The HDR camera captures detailed imagery easily while providing a natural color overlay to the scan data captured under extreme brightness gradients.
– ACCESSORY BAY With this future-proof interface users can connect additional accessories to the scanner, which offers an option for user specifc customization.
The latest ultra-portable enables you to capture fast, straightforward and accurate measurements of complex objects and buildings. The intuitive touch-screen of the FocusS models has been increased in size and clarity to deliver an extraordinary user experience. A built-in 8 mega-pixel, HDR-camera captures detailed imagery easily while providing a natural colour overlay to the scan data in extreme lighting conditions. Familiar traits such as light weight, small size and a 4.5-hour battery runtime per charge makes the Focus S Laser Scanner truly mobile for fast, secure and reliable scanning.
The Focus S 350 offers extra long range of 350m, with their sealed design, are certified via the industry standard Ingress Protection (IP) Rating, and classified in Class 54 for environmental protection. The devices are built to safeguard against intrusions such as dirt, dust, fog and rain as well as other outdoor elements which typically occur in challenging scanning conditions. In addition the laser scanner offers a future-proof interface to connect additional accessories to the scanner and provide a specific on-site compensation routine.
The FARO Focus S 350 is specially designed for outdoor applications due to its small size, extra light weight and extended scanning range. The FocusS 350 provides scanning results even in challenging environments, narrow job-sites, dusty or humid areas, in rain or direct sunlight applications. An on-site compensation tool allows data quality optimisation on-site. Integrated GPS & GLONASS receiver enable easy positioning. HDR imaging and HD photo resolution ensure true-to-detail scan results with high data quality.
Remote scanning as well as almost limitless scan data sharing via SCENE Webshare Cloud make the laser scanning solution truly mobile.
FARO FOCUS LASER SCANNER PERFORMANCE SPECIFICATIONS
| ADDITIONAL PERFORMANCE SPECIFICATIONS | |
| Color Resolution | Up to 165-megapixel color |
| HDR Camera | Exposure bracketing 2x, 3x, 5x |
| Parralax | Minimized due to co-axial design |
| Field of View | 300°vertical? / 360° horizontal |
| Step Size | 0.009 (40,960 3D-pixel on 360°) vertical / 0.009 (40,960 3D-pixel on 360°) horizontal |
| Max. Scan Speed | 97Hz (vertical) |
| Laser Class | Laser Class 1 |
| Wavelength | 1550nm |
| Beam Divergence | 0.3mrad (1/e) |
| Beam Diameter at Exit | 2.12mm (1/e) |
| Data Storage | SDHC, SDXC, 32GB; max. 512GB card |
| Scanner Control | Via touch screen display and WLAN connection, Access by mobile devices with HTML5 |
| Interface Connection | |
| WLAN | 802.11n (150Mbit/s), as access point or client in existing networks |
| Dual Axis Compensator | Performs a leveling of each scan with an accuracy of 19 arcsec valid within ±2 |
| Height Sensor | Via an electronic barometer, the height relative to a fixed point can be detected and added to a scan |
| Compass | The electronic compass gives the scan an orientation |
| GNSS | Integrated GPS & GLONASS |
| On-Site Compensation | Creates current quality report and improves compensation automatically |
| Accessory Bay* | The accessory bay connects versatile accessories to the scanner |
| Inverse Mounting | Yes |
| Real-time, On-site Registration in SCENE | Connects to SCENE, real-time scan processing and registration, overview map |
| Electronic Automation Interface | Available as option, only at point of sale |
| Digital Hash Function | Scans are cryptographically hashed and signed by the scanner |
| Rescanning of Distant Targets | Defined areas recaptured in higher resolution at a greater distance |
| Retake Photos | Select individual photographs with unwanted objects and retake them |
| Power Supply | 19V (external supply), 14.4V (internal battery) |
| Power Consumption | 15W idle, 25W scanning, 80W charging |
| Battery Service Life | 4.5 hours |
| Temperature | Operating: 5° – 40° C | Extended Operating?: -20° – 55° C | Storage: -10°- 60°C |
| Ingress Protection (IP) Rating Class | IP54 |
| Humidity Resistance | Non-condensing |
| Weight | 4.2 kg (including battery) |
| Size/Dimensions | 230 x 183 x 103mm |
| Maintenance / Calibration | Recommended annual |
FARO SCENE SOFTWARE
FARO SCENE Software is specifically designed for all FARO laser scanners. The software processes and manages scanned data both effciently and easily by using the automatic object recognition and scan registration. SCENE is an extremely user-friendly software that allows scans to be automatically combined. The resulting point cloud can be viewed in three dimensions. All the scans are available in color and as high-contrast intensity images. The FARO Laser Scanner and the SCENE software are compatible with the most common CAD software applications and can be used to export scan data to over 50 common software solutions
Automated target-less scan registration
SCENE WebShare Cloud integration
Super-crisp visualisation
Easy processing of large scan projects
Plug-Ins for extended functionality
Homogenisation of point clouds
Software Options: The FARO Laser Scanner and the SCENE software are compatible with the most common CAD software applications and can be used to export scan data to over 50 common software solutions.
