Description

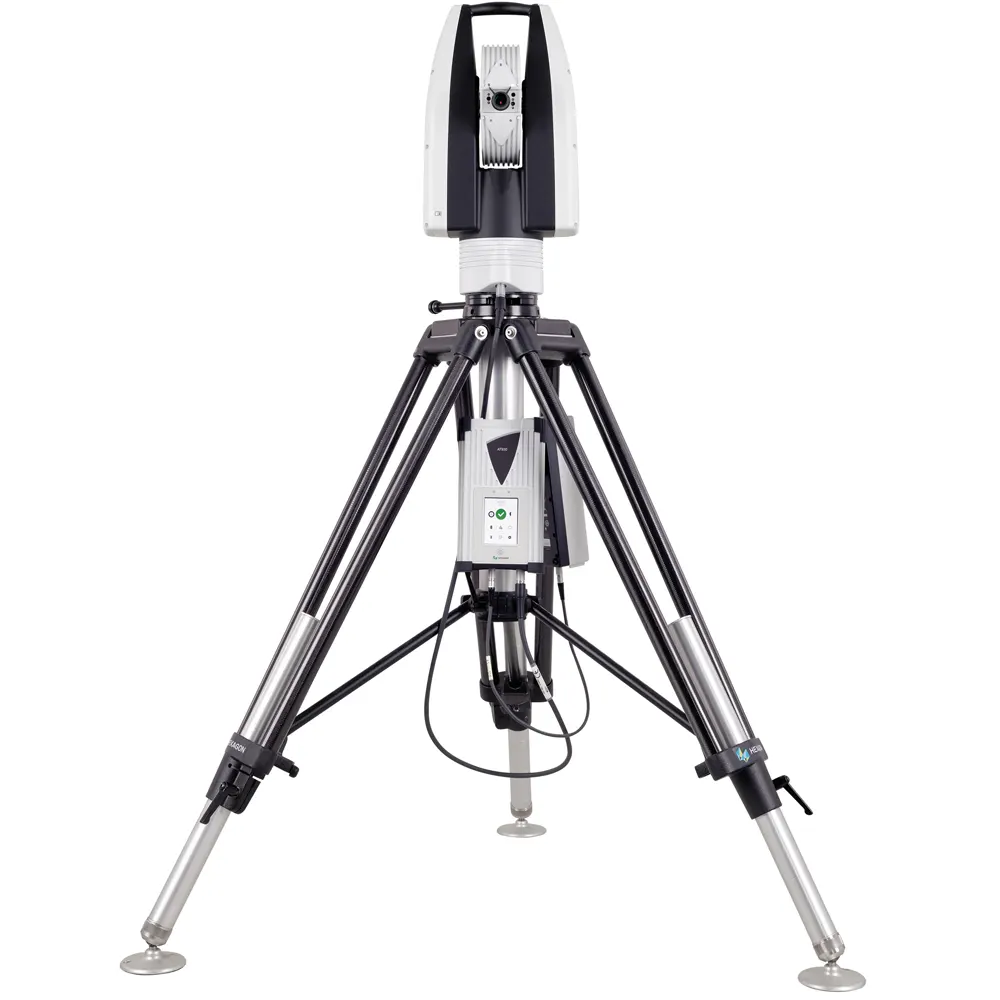

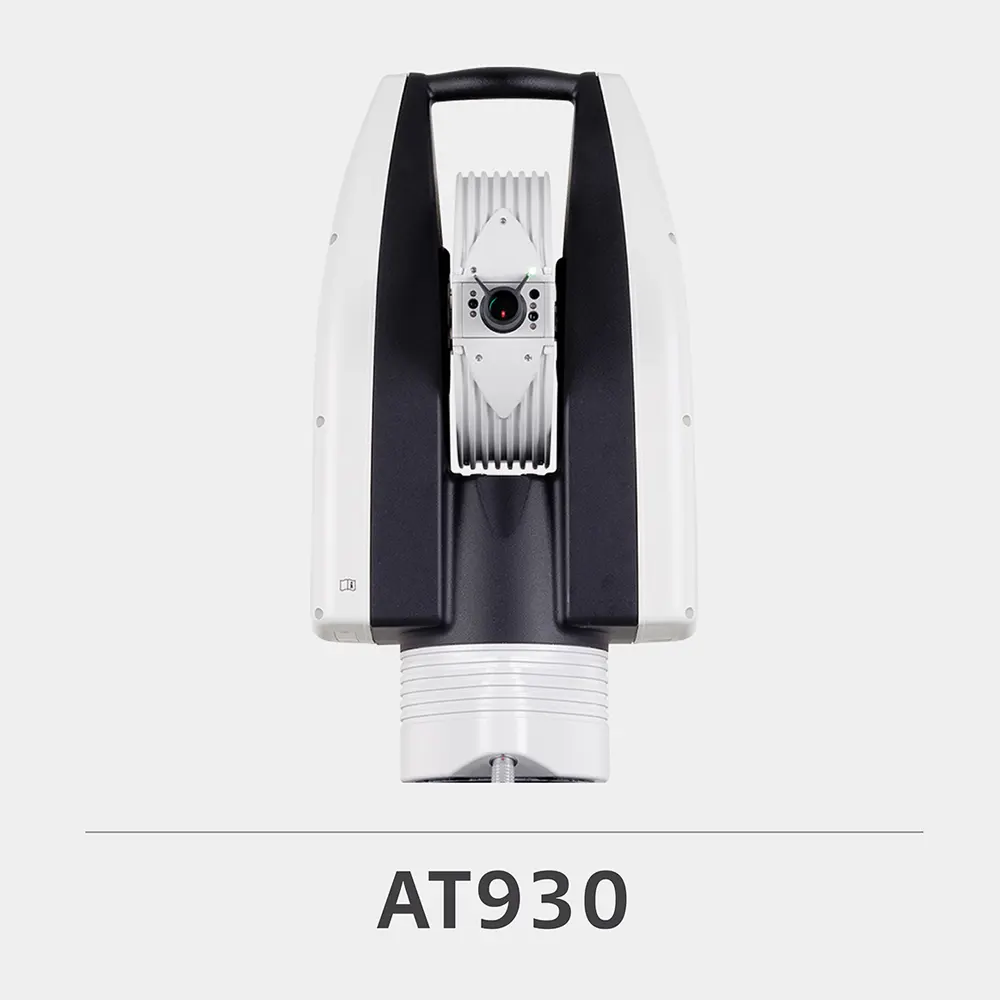

The Leica Absolute Tracker AT930 is the next generation 3D laser tracker to feature the Leica Absolute Interferometer (AIFM), giving high-speed dynamic measurement capabilities that set it apart from the competition.
With automatic target location, real-time architecture and the ability to instantly re-establish an interrupted beam, it is the fast, accurate and user-friendly way to measure the reflectors. Certified to IP54 standards by the IEC, the AT930’s robust integrated-technology design is ready to measure in even the harshest conditions with no need for additional accessories.
As the 3D version of the Leica Absolute Tracker AT960, the AT930 shares all the AT960’s features and functionality except for the vario zoom 6DoF compatibility, making it the ideal solution for high-speed measurements in volumes of up to 160 m (Ø). Compatible with reflectors for line of sight measurement, the AT930 offers a versatile portable 3D laser tracker solution.
The latest generation of the Power Lock active vision system ensures that the laser automatically follows the user, re-establishing an interrupted beam with a typical uncertainty of just 10 µm, so operators no longer need to worry about breaking the beam. The AIFM provides the measurement speed of an interferometer and the accuracy of an absolute distance meter, while the real-time operating system supports a measurement rate of up to 1 000 points per second.
The all-in-one design with levelling equipment, environmental monitoring and overview camera all built into the device enables users to simply unpack the tracker and start to measure.
Leica Absolute Tracker AT930 with Absolute Interferometer Distance range up to 80 m. The system consists of:
- AT930 incl. transportation case
- AT Controller (576871)
- MPS21, Power Supply Unit (576873)
- MCS11, Sensor Cable 1.5m (576885)
- AT Quick Release Mount incl. Mandrel (576338)
- MCA18, External Temperature Sensor 2m (576888)
- Red-Ring Reflector (RRR) 1.5” (575784)
- MSI26, Universal Stand Fixture (576895)
- MAT33, Optical Cleaning Kit (576898)
- Protective Sensor Cover (827057).

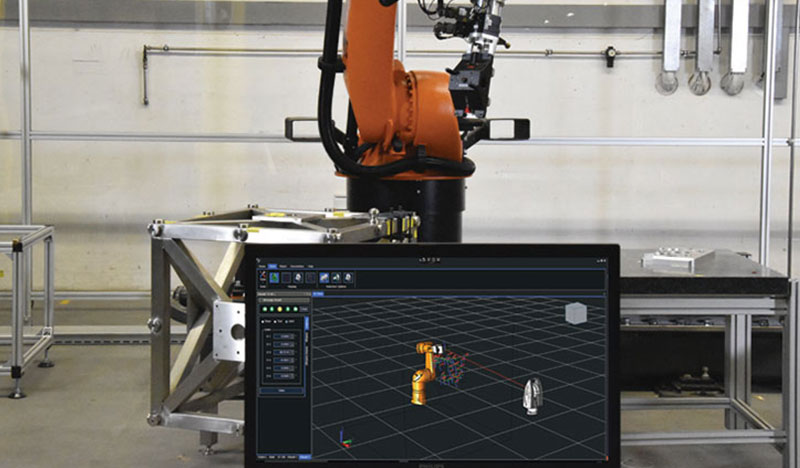

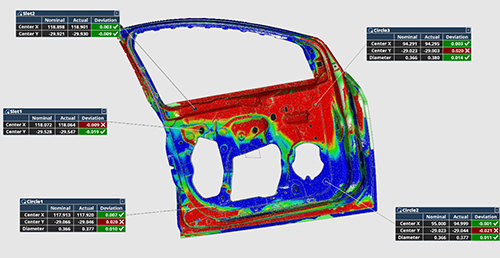

Software That Gets The Job Done. Explore compatible software for the Absolute Tracker and Tracker Scanner:
- Poly Works™ | Inspector
- Hexagon PC-DMIS
- Hexagon Inspire
Features & Benefits:
All-in-one design
With every Leica laser tracker accessory built in to the device, the AT930 requires minimal setup and operator training, and can be ready to measure straight from the box.
Power Lock
Interrupted line of sight is automatically re-established in a +/-5 degree field of view with no user interaction required for ease of use and exceptional performance in even the most crowded measurement volumes.
Absolute Interferometer (AIFM)
The AIFM single distancing unit combines the accuracy of an absolute distance meter and the speed of an interferometer to give readings quickly and accurately with no need for a home point.
1 kHz data output
Real-time architecture with dynamic performance gives a measurement rate of up to 1 000 points per second, enabling more detailed data capture, more quickly.
Battery power
An independent hot-swap battery power supply allows a quick and easy cable-free setup in almost any location for better portability, offering a flexible solution that lasts up to a day’s shift – wherever the tracker is needed.
Wi-Fi
Built-in Wi-Fi enables simple setup and communication with the PC for truly wireless operations, also providing remote control options via laptops, tablets or smartphones so the tracker can be operated by a single user.
IP54
The IEC-certified sealed unit guarantees ingress protection against dust and other contaminants, enabling the tracker to measure effectively in even the harshest environments.
Mateo Station
Integrated environmental unit monitors conditions including temperature, pressure and humidity to compensate for changes and ensure accurate measurements regardless of external factors.
Overview camera (OVC)
High-resolution color OVC enables operators to remotely view the tracker field of vision, locating targets to measure to fixed reflectors – including multi-spot handling in a single image – ideal for static hidden point devices or to supplement documentation.
Orient to gravity (OTG)
The OTG function enables users to measure with the Z-axis aligned to gravity, ideal for levelling and alignment tasks such as build and inspect of tool and jig fixturing.
Real-Time Asset Management
The AT960/AT930/ATS600 is fully compatible with HxGN SF x | Asset Management, the leading solution for asset performance management in the world of Industry 4.0. Based on data collected in real-time and reported through a centralized user-friendly dashboard, SF x Asset Management has been optimized for the management of laser tracker-based systems and is an essential part of every smart manufacturing strategy.
All-in-one design
With every Leica laser tracker accessory built in to the device, the AT930 requires minimal setup and operator training, and can be ready to measure straight from the box.
Power Lock
Interrupted line of sight is automatically re-established in a +/-5 degree field of view with no user interaction required for ease of use and exceptional performance in even the most crowded measurement volumes.
Absolute Interferometer (AIFM)
The AIFM single distancing unit combines the accuracy of an absolute distance meter and the speed of an interferometer to give readings quickly and accurately with no need for a home point.
1 kHz data output
Real-time architecture with dynamic performance gives a measurement rate of up to 1 000 points per second, enabling more detailed data capture, more quickly.
Battery power
An independent hot-swap battery power supply allows a quick and easy cable-free setup in almost any location for better portability, offering a flexible solution that lasts up to a day’s shift – wherever the tracker is needed.
Wi-Fi
Built-in Wi-Fi enables simple setup and communication with the PC for truly wireless operations, also providing remote control options via laptops, tablets or smartphones so the tracker can be operated by a single user.
IP54
The IEC-certified sealed unit guarantees ingress protection against dust and other contaminants, enabling the tracker to measure effectively in even the harshest environments.
Mateo Station
Integrated environmental unit monitors conditions including temperature, pressure and humidity to compensate for changes and ensure accurate measurements regardless of external factors.
Overview camera (OVC)
High-resolution color OVC enables operators to remotely view the trackers field of vision, locating targets to measure to fixed reflectors – including multi-spot handling in a single image – ideal for static hidden point devices or to supplement documentation.
Orient to gravity (OTG)
The OTG function enables users to measure with the Z-axis aligned to gravity, ideal for levelling and alignment tasks such as build and inspect of tool and jig fixturing.
Real-Time Asset Management
The AT960/AT930/ATS600 is fully compatible with Metrology Asset Manager, the leading solution for asset performance management in the world of Industry 4.0. Based on data collected in real-time and reported through a centralized user-friendly dashboard, Metrology Asset Manager has been optimized for the management of laser tracker-based systems and is an essential part of every smart manufacturing strategy.
