Description
For sale excellent used condition Leica Absolute Tracker AT402. The most portable 3D Absolute Tracker for traditional inspection tasks or for fully guided measurement processes.
This pre-owned Leica Absolute Tracker AT402 able to be powered by its own internal battery and is able to work in the most demanding environment yet maintains the highest level of precision and the largest ever work envelope. The AT402 features increased ruggedness and extended battery life.
The Leica Absolute Tracker AT402 is the most portable 3D Absolute Tracker for traditional inspection tasks or for fully guided measurement processes. It is able to be powered by its own internal battery and is able to work in the most demanding environment yet maintains the highest level of precision and the largest ever work envelope. The AT402 features increased ruggedness and extended battery life.
The Leica Absolute Tracker AT402 has a unique “All in One” system design that incorporates such needed accessories as built in live video, level to gravity, environmental monitoring and even an integrated IR remote control. By utilizing the integrated Wireless LAN communication the sensor can be used completely wirelessly making this the most portable Absolute Tracker ever.
MEASURE WHERE NO OTHER CMM CAN GO
Especially large structures require highly accurate, flexible and portable metrology equipment. This surrounding is right for the Leica Absolute Tracker AT402. It redefines large scale portable measurement and opens the door for unprecedented metrology applications.
A new level of portability & durability
The complete measurement system weighs less than 15 kg including the case and in a minimum configuration it will fit into the overhead compartment of most
commercial airliners. This is truly the world’s most portable CMM
MASTERING ANY INDUSTRY CONDITION
Ready for any environment Utilizing a completely sealed design that is independently IP54 (IEC 60529) certified means this sensor can be installed in the most unforgiving environments. Spraying coolant, dust, weld splash, nothing is too harsh for this sensor. The Leica Absolute Tracker AT402 is the first laser tracker certified for outdoor use.
A WIRELESS ALL-IN-ONE LASER TRACKER
Battery Powered, Cable-free Operation
With two identical batteries – one in the sensor, one in the controller – the Leica Absolute Tracker AT402 can run for a work day. When power approaches a critical level, the batteries can be either replaced or hot swapped. The laser tracker continues running as if nothing had happened. With the built in WiFi connection the Leica Absolute Tracker AT402 becomes a completely wireless portable CMM free from any external data or power cable requirements. Optionally the Leica Absolute Tracker AT402 is ready for Power over Ethernet. With this technology, a regular LAN cable supplies the sensor with both data and power.
Ultra Large Volume Measurements
With endless telescope rotation the sensor can measure a full 360° horizon and a 290° vertical dome. Pair this with a typical measurement volume of 320 meters
(ø) and you have the world’s largest volume precision CMM.
Complete System Integration
The Leica Absolute Tracker AT402 is ready for any measurement task that comes its way. All accessories such as remote control, environmental monitor or level
sensor are already built in.
POWERLOCK – THE BEAM CATCHES THE REFLECTOR AUTOMATICALLY
Leica Geosystems introduced the world to PowerLock in 2009. This vision technology detects a reflector and automatically locks the laser beam onto it, even when the target is moving. The laser beam automatically moves to the reflector!
Laser Trackers without PowerLock require a high amount of skill and experience to learn how to efficiently use the sensor without breaking the beam. PowerLock changes this completely and makes the handling of a laser tracker much easier.
A PERFECT MATCH: ULTRA-PORTABLE ENTRY-LEVEL PROBING SYSTEM

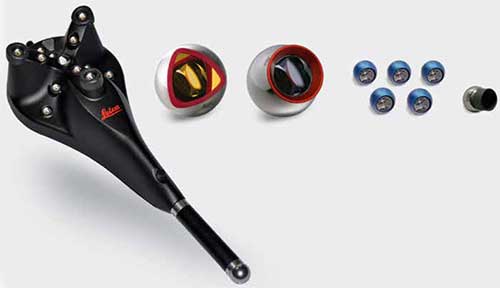

The Leica B-Probe is a handheld point probing tool designed for the Leica Absolute Tracker AT402. Due to its unique portability and small footprint, it can measure where neither 3D Laser trackers nor traditional optical probing system can reach. It can gather hidden 3D points in a measurement volume of 20 m (ø). For very large structures that require highly accurate measurements, the volume can be extended with virtually no loss in probing accuracy by completing a laser tracker move station. For simple metrology routines, both the AT402 and the B-Probe are battery-operated and support cableless operation – unique in the world of large-volume 3D metrology.
BOUNDARIES ARE THERE TO CROSS
Leica Absolute Tracker AT402 applications
Aerospace
The Leica Absolute Tracker AT402’s portability and capability for one man operation make many challenging aerospace applications such as tool building and inspection, geometry check, part alignment, metrology assisted assembly or antenna construction much easier.
Off Highway and Heavy Vehicles
Manufacturing vehicles of any type requires metrology equipment which helps to ensure top quality. Tool repeatability, vehicle inspection, line installation or line
maintenance are just a few examples where the Leica Absolute Tracker AT402 excels. With an ultra large volume measurement and wireless operation these asks can be completed easier than ever before.
Power Generation
Turbines and generators for use in wind or water power must withstand extreme conditions. For checking strict tolerances, ultra high accuracy is essential. The Leica Absolute Tracker AT402’s portability and flexibility make large-volume shaft or machine alignment, machine inspection or blade measurement easy.
Research and Science
When large structures and distances are the object of scientific activities, the Leica Absolute Tracker AT402 with a typical measurement volume (ø) of 320 m is the right metrology tool. Ring survey or part inspections on an accelerator are just two examples.
Shipbuilding
Due to its infinite rotation and extreme measurement range, the Leica Absolute Tracker AT402 can handle even the ship building industry’s gigantic dimensions when it comes to surveying, aligning engines and shafts or installing equipment
Ready to go out of the box and open for more: Leica Absolute Tracker AT402
The Leica Absolute Tracker AT402 comes with everything that is needed to start measuring – including a 1.5” Red Ring Reflector. In addition, a wide range of reflectors is available for special applications. A handheld probing device, the Leica B-Probe, can also be added to the Leica AT402
EXPERTISE IN QUALITY
It all started with a theodolite. When Jakob Kern first constructed precision instruments in Switzerland of the 1830s, the industrial sector was in its early stages. But there is one lasting legacy – the commitment to absolute quality. Many Leica Geosystems instruments are still in daily use after several decades, as for example the first ever built Leica Geosystems laser trackers from 1990. Today, the Leica Geosystems metrology branch is a part of the global Hexagon Metrology network. Where quality comes together Every installed system is the result of individual consulting from a Hexagon Metrology sales engineer or a certified dealer. The definition of the metrology challenge is the initial step. Together with the future users, Hexagon Metrology develops
the perfect package consisting of a Leica Geosystems sensor, suitable software and optional system extensions. After the purchase, Hexagon Metrology offers customized service and support for the entire instrument life.
