Keyence MD-X1020 3-Axis Hybrid Laser Marker
- Brand: KEYENCE
- Category: Industrial Laser Marking Systems
- Condition: UsedCondition
- Warranty: 6 Months
Request Quote
Fill out the form below and our sales team will contact you within 24 hours.
This listing Keyence MD-X1020 Laser Marker Engraver 3-Axis MOPA with vision build-in camera is for a complete, ready-to-run set, making installation and deployment straightforward for your facility.
The Keyence MD-X1020 3-Axis MOPA Laser Marker Engraver is a high-performance industrial marking system designed for precision, speed, and reliability across a wide range of manufacturing and traceability applications. This unit is offered pre-owned in mint condition, fully tested, and professionally maintained to ensure excellent operational performance. It delivers the same high-quality marking results expected from advanced laser marking technology while providing a significant cost savings compared to purchasing new equipment. The integrated 3-axis control system allows stable marking on flat, curved, and stepped surfaces, while the MOPA laser technology enables superior contrast, fine detail, and flexible marking parameters on metals, plastics, and coated materials.
This system is equipped with a built-in vision camera, allowing accurate positioning, automatic alignment, and code verification to improve production efficiency and reduce setup time. With fast scan speeds, high resolution marking capability, and wide area coverage, the system is ideal for industrial environments requiring permanent product identification, barcode marking, QR code marking, logo engraving, and serial number traceability. The forced air cooling design supports stable long-term operation without the need for external cooling systems, making it suitable for continuous production environments.
What’s Included in This Sale:

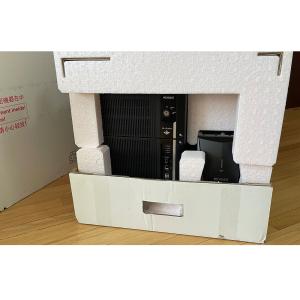

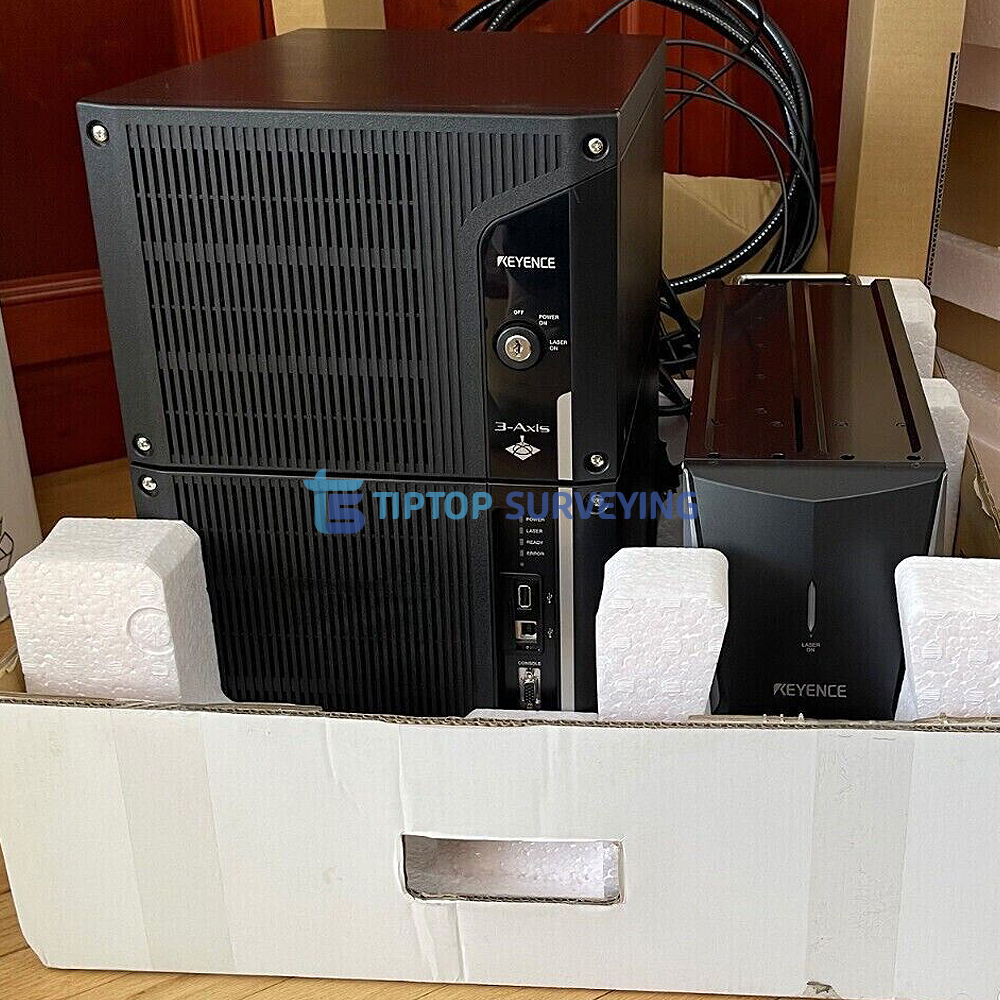

- Keyence MD-X1020 Laser Marking Head Unit
- Keyence MD-X1020 Controller Unit
- Integrated Vision Camera System
- Head Connection Cable
- Key (2x)
- Power Cables
- Ethernet cable
- Console Unit
- Marker controller connection control cable
- Standard Mounting / Connection Accessories

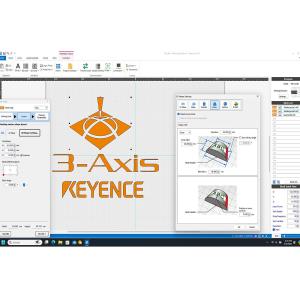

- Programming, Controlling, and Operating Software (Marking Builder MB3-H2D4 with MB-HLD suite)

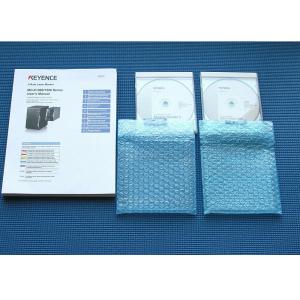

- Instruction manual (printed and PDF electronic version
This system is ideal for manufacturers, automation integrators, medical device producers, electronics manufacturers, automotive suppliers, and precision component marking operations looking for a reliable, high-end laser marking solution at a reduced investment cost.
Specifications and Technical Details:
| Model | MD-X1020 | |||
| Type | Marking unit (controller + head) 13 W Wide area | |||
| 2D code reader add-in (sold separately) | MD-XAD1/MD-XAD1A | |||
| Console (sold separately) | MC-P1 | |||
| Marking method | XYZ 3-Axis simultaneous scanning method | |||
| Marking laser | Type | YVO4 laser, Class 4 Laser Product (IEC60825-1, JIS C6802, FDA [CDRH] part 1040.10)*1 | ||
| Wavelength | 1,064 nm | |||
| Output | 13 W | |||
| Q-switch frequency | CW (continuous wave), 1 to 400 kHz | |||
| Guide laser / Working distance pointer | Semiconductor laser, wavelength: 655 nm, output: 1.0 mW, Class 2 Laser Product (IEC60825-1, JIS C6802, FDA [CDRH] part 1040.10)*1 | |||
| Marking area | 330 x 330 x 42 mm 12.99” x 12.99” x 1.65” |
|||
| Standard working distance (±variable width) | 300 mm (±21 mm) 11.81” (±0.83”) | |||
| Marking resolution | 5 µm | |||
| Scan speed | Max. 8,000 mm/s 314.96”/s | |||
| Character type | Font | KEYENCE original font (numbers, letters, katakana, hiragana, kanji), user font, TrueType font, OpenType font*2 | ||
| Barcode | CODE39, ITF, 2of5, NW7 (CODABAR), JAN, CODE128, EAN, UPC-A, UPC-E | |||
| 2D code | QR code, micro QR code, DataMatrix (ECC200/GS1 DataMatrix) | |||
| GS1 DataBar | GS1 DataBar, GS1 DataBar CC-A, GS1 DataBar Stacked, GS1 DataBar Stacked CC-A, GS1 DataBar Limited, GS1 DataBar Limited CC-A, GS1 DataBar Truncated, GS1 DataBar Truncated CC‐A |
|||
| Logo image | Custom character font and logo (CAD) data, BMP/JPEG/PNG/TIFF | |||
| Marking conditions | Workpiece style | Stationary marking, Moving marking (constant, encoder) | ||
| Character size (marking height/width) | 0.1 to 330 mm 0.004” to 12.99” | |||
| No. of registered programs | 2,000 max. | |||
| No. of program blocks | 256 | |||
| I/O (Input/output) | Terminal block I/O, MIL connector I/O, contactor control I/O*3 | |||
| Interface | RS-232C, USB 2.0, Ethernet (100BASE-TX/10BASE-T)*4 | |||
| Head installation direction | All directions | |||
| Head cable length | 4.3 ±0.1 m | |||

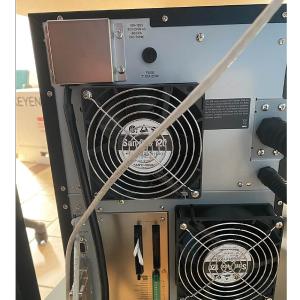

| Cooling method | Forced air cooling | |||
| Rated voltage and power consumption | 100 to 120/200 to 240 VAC ±10 %, 50/60 Hz, 650 VA max. | |||
| Environmental resistance | Enclosure rating | IP64 (marking head) | ||
| Pollution degree | 2 | |||
| Overvoltage category | II | |||
| Ambient temperature for storage | -10 to +60 °C 14 to 140 °F (No freezing) | |||
| Ambient temperature | 0 to +40 °C 32 to 104 °F | |||
| Ambient humidity for storage | 30 to 85 % RH (No condensation) | |||
| Relative humidity | ||||
| Weight | Controller: 23.0 kg Head: 13.6 kg Console: 2.0 kg |
|||
