Leica Absolute Tracker ATS800 is fast, precise, and versatile large-scale inspection for your industry.

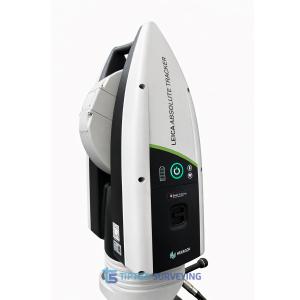

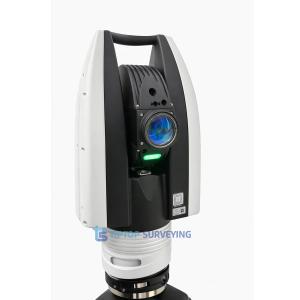

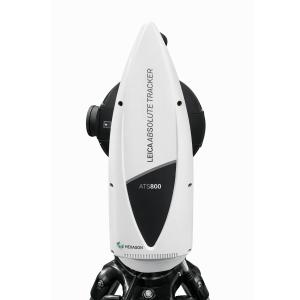

The Leica Absolute Tracker ATS800 is a next-generation industrial laser tracker designed for high-accuracy, long-range, non-contact 3D measurement. It combines advanced laser tracking technology with integrated direct scanning capability, allowing users to perform precise dimensional inspection without the need for retroreflectors or targets in many applications.
Engineered for modern manufacturing and quality control environments, the ATS800 delivers high-speed data capture, automated feature measurement, and reliable performance in large-volume metrology tasks. It is widely used in aerospace, automotive, energy, heavy machinery, and precision engineering industries.
The system enables operators to measure complex geometries, surfaces, edges, holes, and features directly, even at long distances, improving productivity while reducing setup time and operator intervention.
What's Included:
- ATS800 Laser Tracker Unit

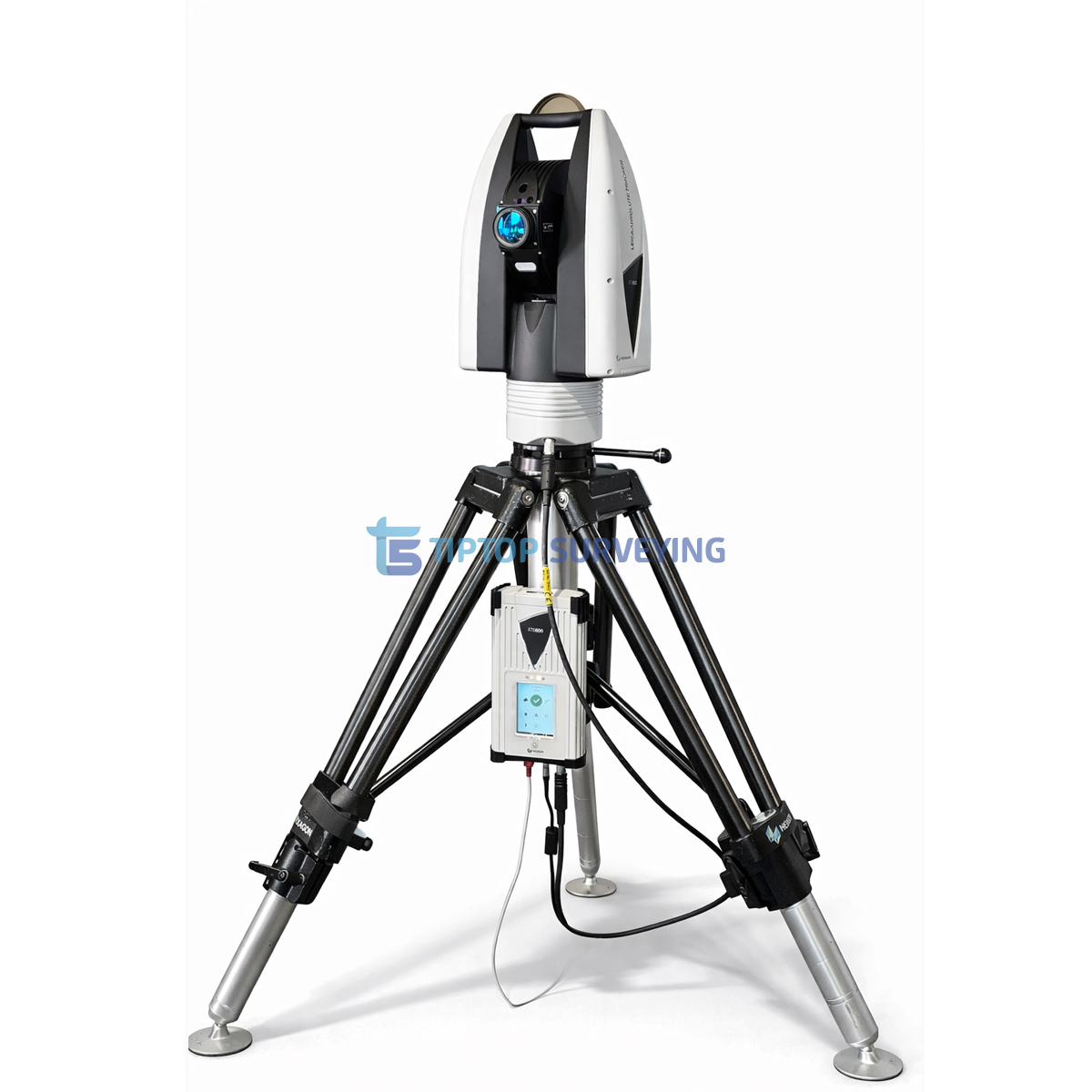

- Industrial Carbon Fiber Tripod
- Controller / Power Distribution Unit
- Power Cables and Communication Cables
- Battery Packs
- Battery Charger
- Transport / Shipping Case
- Calibration Certificate
- Software License
- User Documentation
Typical Applications
- Large Structure Assembly Inspection
- Aerospace Tooling and Jig Verification

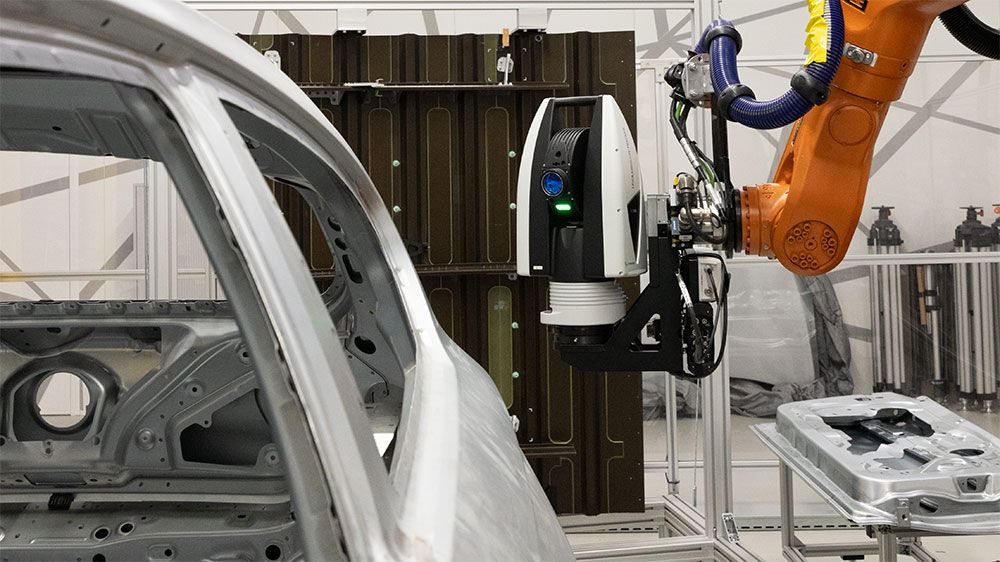

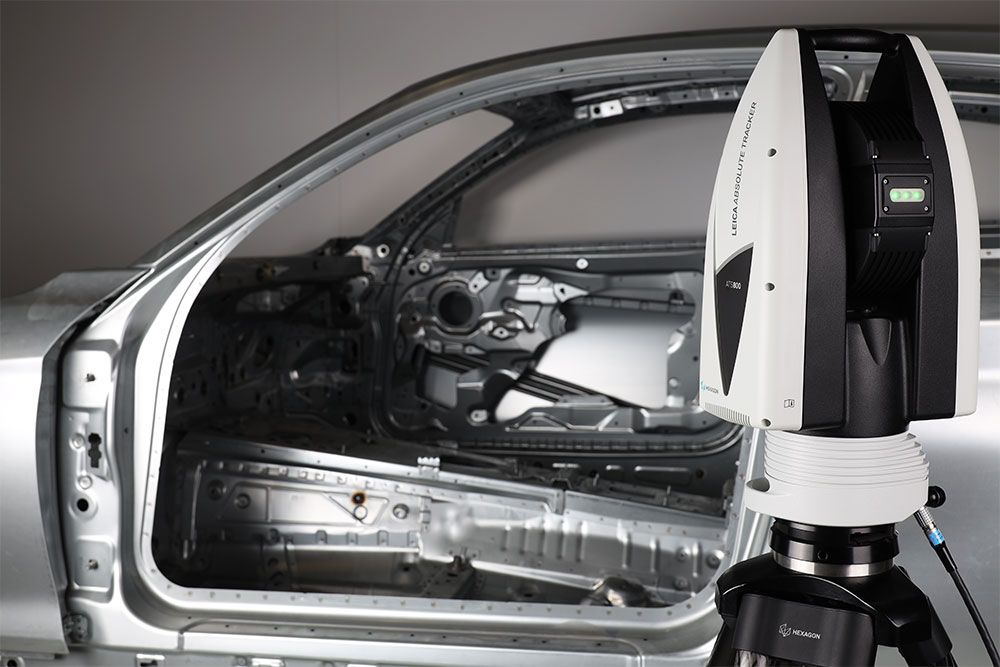

- Automotive Body and Chassis Inspection
- Heavy Equipment Manufacturing
- Shipbuilding Measurement
- Energy Sector Turbine and Generator Alignment
- Mold, Die, and Tool Verification
- Plant Installation and Alignment
Technical Specifications
General System Specifications
| Parameter |
Specification |
| Product Type |
Industrial Laser Tracker with Direct Scanning |
| Measurement Method |
Laser Tracking + Direct Surface Scanning |
| Operation |
Non-Contact and Reflector-Based Measurement |
| Applications |
Large Volume Precision Metrology |
| Portability |
Field Portable Industrial System |
Measurement Performance
| Parameter |
Typical Performance |
| Measurement Range |
Up to ~40 m typical (application dependent) |
| Direct Scanning Range |
Several meters without reflector (application dependent) |
| Angular Measurement |
High Precision Absolute Encoders |
| Distance Measurement |
Laser Interferometer / ADM Technology |
| Point Measurement Speed |
High-Speed Real-Time Acquisition |
Accuracy Performance (Typical)
| Parameter |
Typical Value |
| Distance Accuracy |
Micron-level depending on distance |
| Angular Accuracy |
Arc-second class |
| Volumetric Accuracy |
Application and distance dependent |
| Repeatability |
High repeatability for industrial inspection workflows |
Laser System
| Parameter |
Specification |
| Laser Type |
Class Industrial Measurement Laser |
| Measurement Technology |
Absolute Distance Measurement + Interferometer |
| Target Tracking |
Automatic Reflector Tracking |
| Direct Measurement |
Yes – Surface and Feature Measurement |
Physical Specifications
| Parameter |
Specification |
| Mounting |
Standard Metrology Tripod Mount |
| Construction |
Industrial Composite + Metal Frame |
| Field Use |
Yes – Shop Floor Rated |
| Transport |
Rugged Shipping Case |
