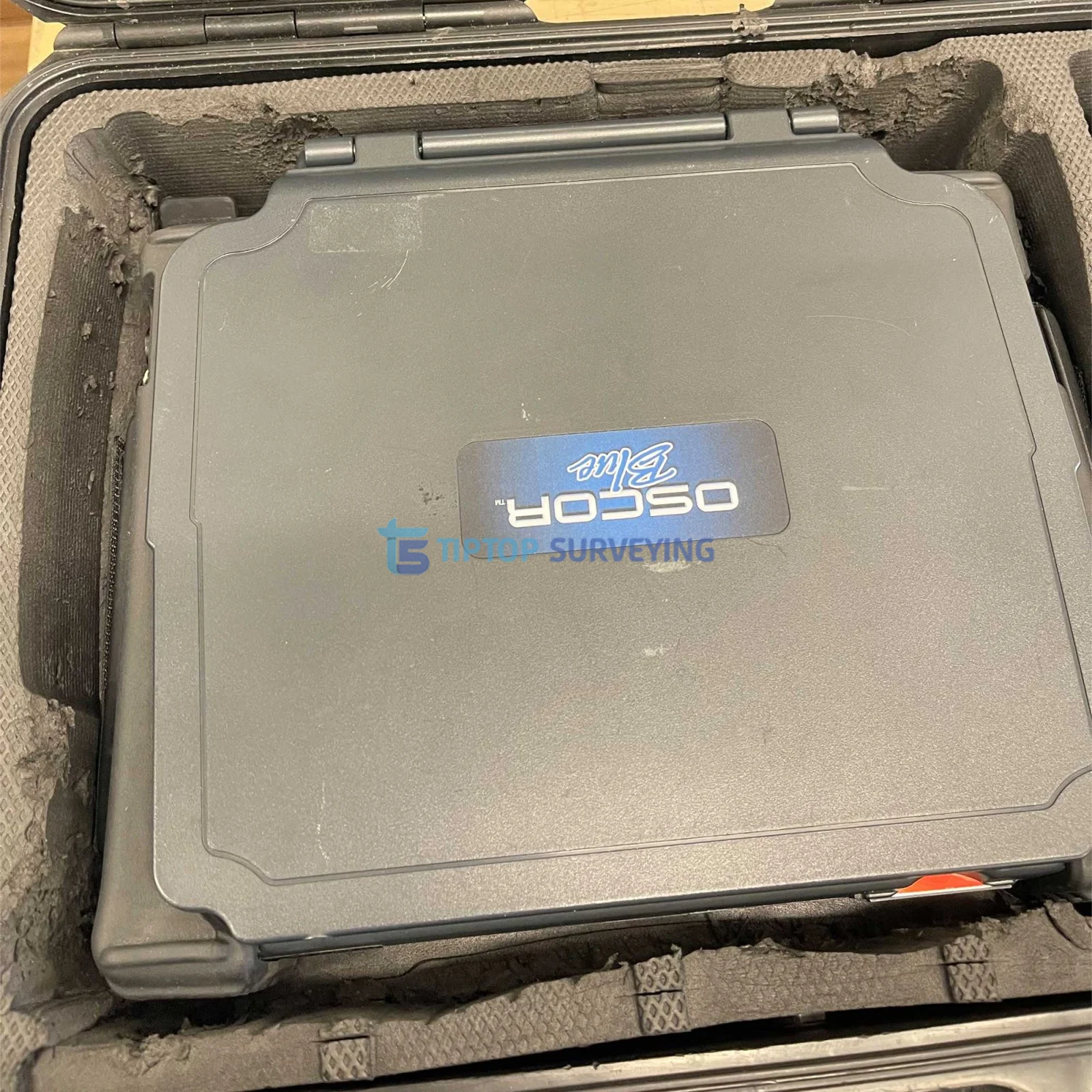

Used REI OSCOR Blue 24 GHz Spectrum Analyzer

Used REI OSCOR Blue 24 GHz Spectrum Analyzer,has been professionally inspected, shop-tested, and serviced by authorized technicians. All applicable firmware updates and upgrades have been completed to help ensure reliable operation and performance in accordance with the manufacturer's standards.

This pre-owned REI OSCOR Blue 24 GHz Spectrum Analyzer is offered as-is and includes a 6-month warranty and a 30-day money-back guarantee, providing additional confidence and peace of mind with your purchase.

An excellent opportunity for professionals seeking a reliable RF spectrum analysis instrument for technical surveillance countermeasures (TSCM) and electronic security applications at a potentially lower cost than purchasing new equipment.

REI OSCOR Blue 24 GHz Spectrum Analyser

The REI OSCOR Blue 24 GHz Spectrum Analyser is field-portable with a rapid sweep speed covering 12KHz to 24 GHz. Designed to detect illicit eavesdropping signals, perform site surveys for communication systems, conduct RF emissions analysis, and investigate misuse of the RF spectrum. Functionality suited for detecting unknown, illegal, disruptive, and anomalous rogue transmissions across a wide frequency range. The OSCOR Blue Spectrum Analyzer is designed to detect illicit eavesdropping signals, perform site surveys for communication systems, conduct radio frequency (RF) emissions analysis, and investigate misuse of the RF spectrum.

Efficiency: sweeps 24 GHz in one second to quickly detect transmitting electronic surveillance devices and ensure that spectrum activity is captured

Usability: captures comprehensive signal activity without missing signals due to limited antenna range or from having to switch external antennas

Portability: complete integrated spectrum analyzer system with built-in antennas and analysis software, small and hand-held for easy mobility

Features:

• REI OSCOR Blue spectrum Analyser sweeps 24 GHz in 1 second in 12.2 kHz steps. It has a fast sweep time, built-in antennas, and on-board software make the OSCOR Blue easy and quick to deploy, optimising total operational speed.
• Seamless real-time spectrum visibility from 10 kHz to 24 GHz using the integrated auto-switching multi-antenna system.
• REI OSCOR Blue is lightweight (9.6 lbs. / 4.4 kg).
• OSCOR Blue Spectrum Analyser is small and hand-held for easy mobility through target areas while collecting trace data.
• REI’s trace analysis functionality adds dimension by providing full analysis of trace data on-board. Perform trace analysis on-screen without the need for a laptop.
• OSCOR Blue can subtract a reference trace from a target sweep trace, and then create a signal list from the difference trace, very quickly showing a list of signals unique to the target area.
• Waterfall analysis captures and records signal peak traces over time for historical analysis of spectrum activity.
• Signals are easily located based on RSSI level change and near field locating function.
• There is a continuous spectrum update while using built-in suite of demodulators (audio, video).
• OSCOR Blue includes a Multi-Purpose Probe that plugs into the Auxiliary port for capturing carrier current, IR, CATV (F Connector), VLF Antenna.

Applications:

• Technical Surveillance Countermeasures (TSCM)
• Counter Surveillance
• Radio Frequency (RF) Detection
• Radio Frequency (RF) Analysis
• Spectrum Analysis
• Signal Analysis
• Intelligence Protection
• Executive Protection
• Eavesdropping Detection
• Surveillance Equipment Detection
• Electronic Surveillance Detection.

­Specification of the Spectrum analyzer Oscor Blue for portable RF signals detection and analysis
