Description
Demo unit LMX200 Utility Locating GPR system, this instrument is in mint condition like new and has been used as a rental and demonstrator model, manufacture 2024. This unit has an ultra-wideband (UWB) 250 MHz GPR antenna for dynamic target enhancement. The max depth range it is rated for is 26 feet.
Radiodetection LMX200 GPR KIT includes:

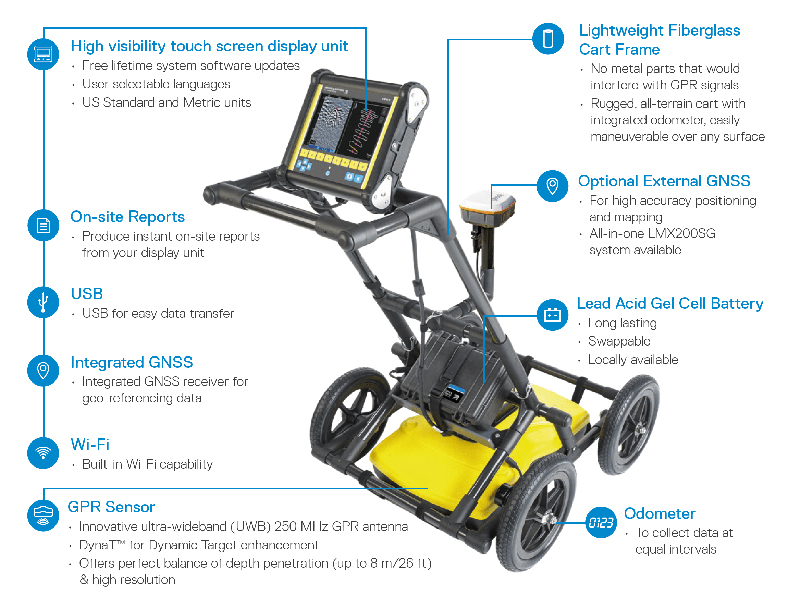

- LMX200 Utility Locating GPR System
- 8.0” diagonal, high-visibility, sunlight-readable LCD color display with touchscreen
- Internal GPS for geotagging screen captures (need external GPS for software) Built-in Wi-Fi, allowing you to send mini reports from the field
- Sensor assembly
- Data markers to highlight features on your data
- GPR sled with medium wheels
- USB for quick data transfer
- Rechargeable Lead acid battery with AC charger
- 1-Year warranty
Options for the LMX200 includes:
- an external GPS, for higher positional accuracy
- the Enhancement package, which enables the user to slice through the exported depth data, export data to other formats and more. The Utility Suite software option offers features such as processing and displaying grid data in alternative ways, and the ability to output data to 3D visualization software such as Voxler.
Specifications:
– GPR Sensor Dimensions: 630 × 410 × 230 mm
– Lightweight and Portable: Sensor weight at 5 kg, Display Unit at 2.83 kg.
– High-Visibility Display: 8.0″ touch screen LCD with adjustable backlighting.
– Connectivity and Power: Wi-Fi enabled, integrated GPS/GLONASS, and long-lasting 12 Volt Lead acid gel cell battery.
– Environmental Resilience: Ruggedized, IP65 rated for harsh conditions, and operational in temperatures ranging from −40 to 50℃.
Enhance Your Utility Locating Experience with LMX200. The LMX200 goes beyond the capabilities of the LMX100, offering advanced features for public utility systems, local governments, and professionals in construction and environmental management. With its user-friendly interface, detailed visualization, and comprehensive data handling, the LMX200™ is your go-to solution for efficient and accurate utility locating.
Key Features of the LMX200:
- Innovative Grid Scan Mode: Simplify your utility locating tasks with guided grid collection and adjustable grid sizes, enhanced with an Obstacle Avoidance feature.
- Dynamic Target Enhancement (DynaT™): Our patented feature that optimizes the visualization of various subsurface targets.
- External GPS Integration: Leverage SplitView and MapView for a comprehensive survey experience.
- Real-Time Interpretations: Classify targets on-site with color-coded options for instant decision-making.
- Depth Slice Generation: Instantly create depth slices from grid data, even in incomplete grids.
- Data Export Capabilities: Utilize EKKO Project™ for post-processing and mapping, enhancing your analysis and reporting.
Radiodetection LMX200 Utility Locating GPR System is the Premier Ground Penetrating Radar (GPR) for Utility Locating Equipment in the market. It provides the perfect frequency, data processing power, and filters for detecting utilities and traditionally non-locatable features such as: It provides the perfect frequency, data processing power and filters for detecting utilities and traditionally non-locatable features such as:
- Non-metallic pipes, including PVC and asbestos cement
- Underground Electrical Cable
- Concrete storm and sewer systems
- Utilities where installed tracer wiring has failed
- Underground storage tanks and drainage tiles
- Septic system components
- Non-utility structures such as vaults, foundation walls, and concrete pads
