9,000.00USD
● InStock

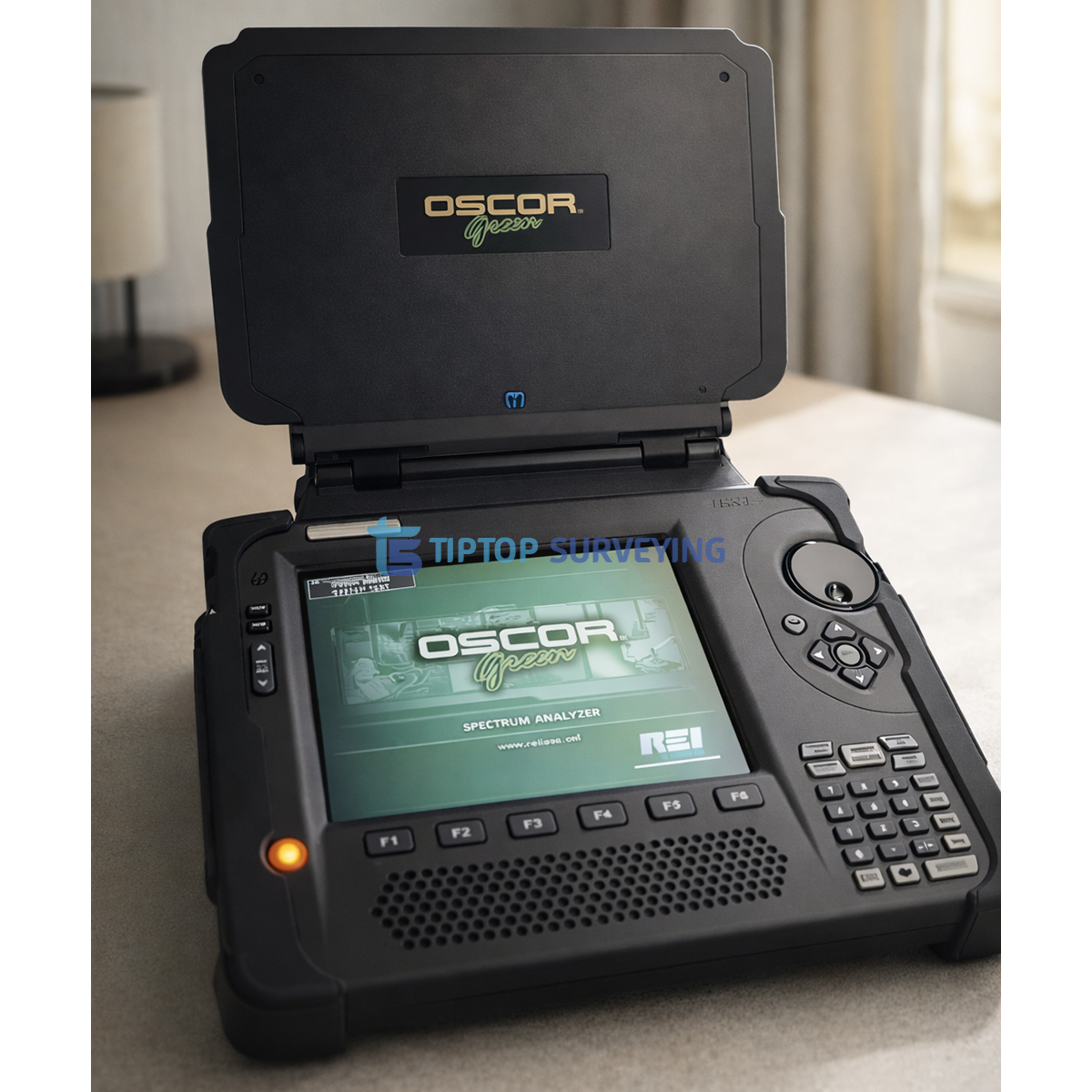

OSCOR Green 24 GHz Spectrum Analyzer
The REI OSCOR Green Spectrum Analyzer is designed to detect illicit eavesdropping signals, perform site surveys for communication systems, conduct radio frequency (RF) emissions analysis, and investigate misuse of the RF spectrum. The OSCOR Green is a portable spectrum analyzer that sweeps 24 GHz in one second to quickly detect transmitting electronic surveillance devices and ensure that spectrum activity is captured.
$9,000.00 USD / Unit
● In Stock
Request Quote

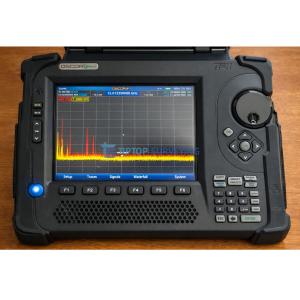

Offered for sale is an REI OSCOR Green 24 GHz Spectrum Analyzer in excellent used condition, fully functional and professionally maintained. This is a high-performance, professional-grade RF detection and spectrum analysis system widely used for technical surveillance countermeasures (TSCM), signal detection, and advanced RF monitoring applications. This unit has been carefully handled, tested, and verified to be operating correctly. All core functions perform as intended, and the system boots and runs normally with factory-installed operating software.
What's includes:
Hardware
- OSCOR Green 24 GHz Spectrum Analyzer
Accessories
- Multi-Purpose Probe
- RF Leakage Detection Headphones
- Battery
- Power supply
- Charging cable

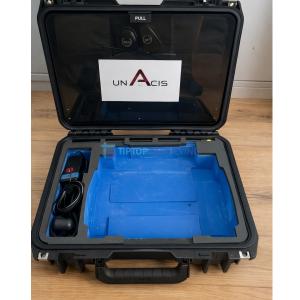

- Transport Hard case with custom foam insert
Software
- Factory-installed OSCOR Green Embedded Operating Software
- Built-in signal detection and analysis suite

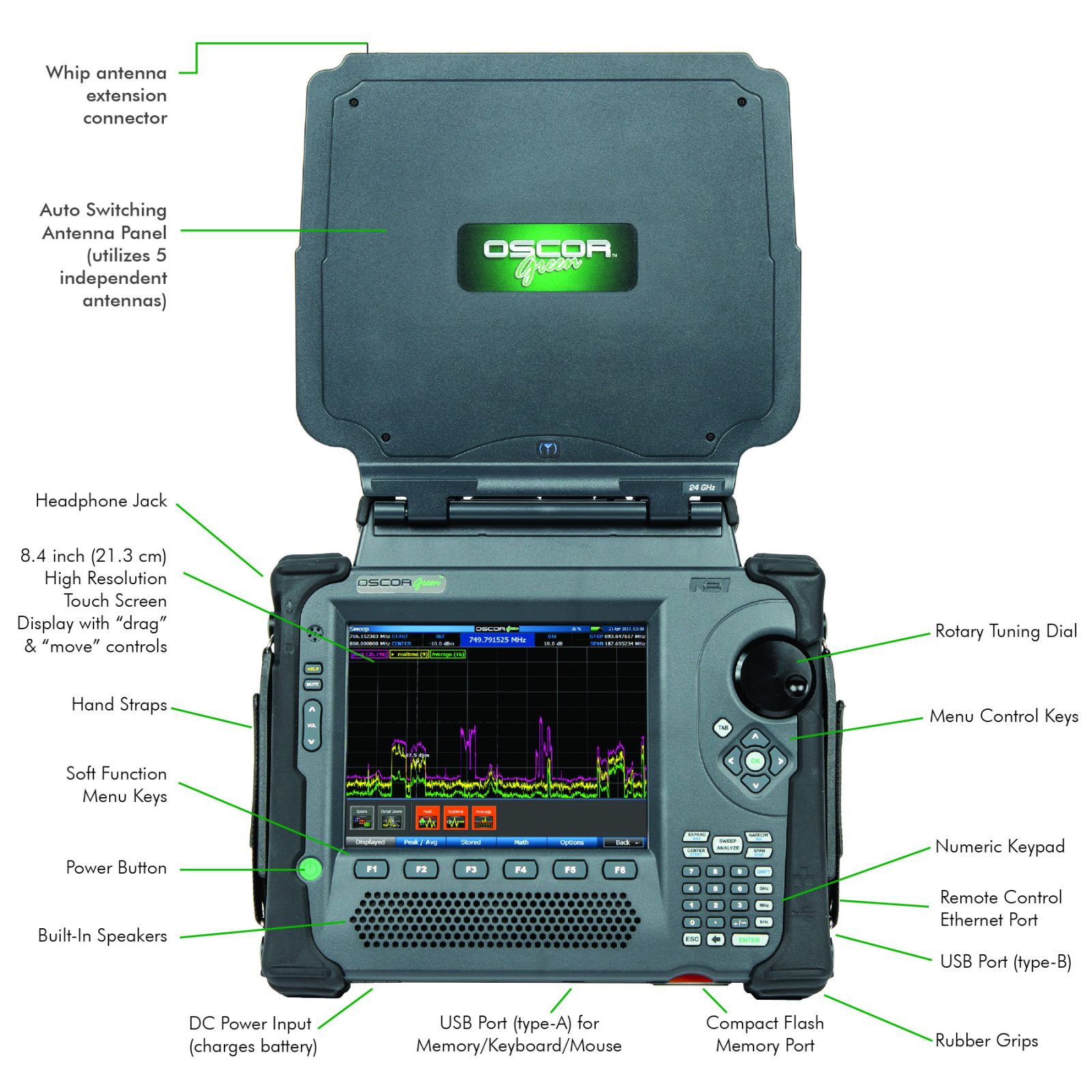

OSCOR Green 24 GHz Spectrum Analyzer Features:
- Scans 24 GHz in 1 second ensuring spectrum activity is captured (2,000,000 data points per second)
- Built-in software and auto switching antenna system to 24 GHz means no additional antennas, cables, or laptop are required
- Touch screen allows you to pan, zoom, drag, and move
- The lightweight unit weighs only 9.6 lbs/4.4 kg providing bench-top spectrum analyzer capabilities in portable design
- Battery run time is 3-4 hours

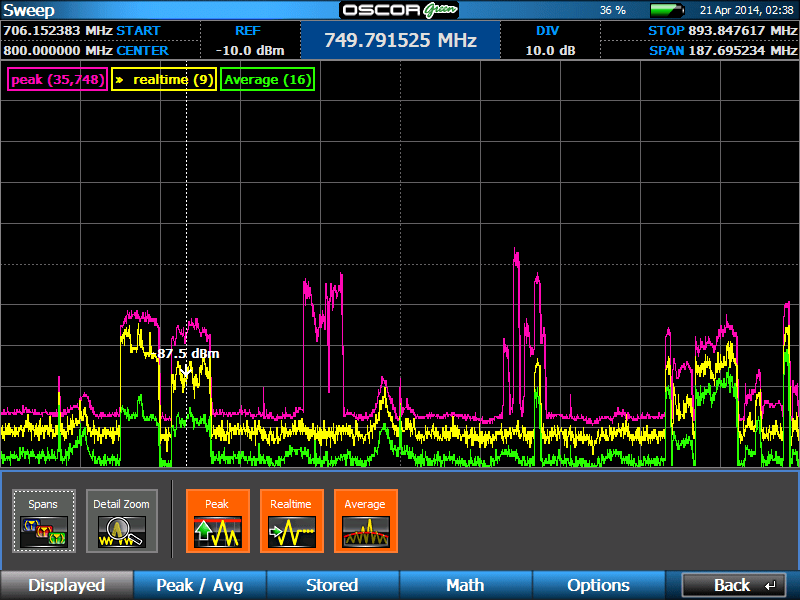

- RF traces are easily mapped; reference and target traces are quickly captured, stored, and compared (including differences) for rapid analysis
- Quickly identify localized RF energy transmissions and generate signal lists

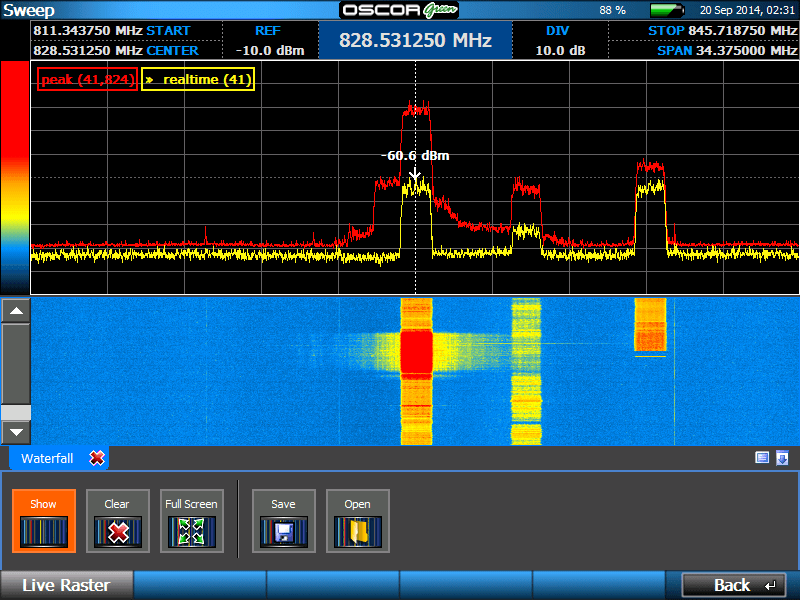

- Spectrogram (Waterfall) display generates Spectrogram of receiver traces over time
- Built in demodulators: AM, FM, SSB, subcarrier, and video (displayed on screen)
- Connect remotely to the OSCOR Green™ with 3rd party virtual network computing software
OSCOR Green 24 GHz Spectrum Analyzer Applications:
- Technical Surveillance Countermeasures (TSCM)
- Counter Surveillance
- Radio Frequency (RF) Detection
- Radio Frequency (RF) Analysis
- Spectrum Analysis
- Signal Analysis
- Intelligence Protection
- Executive Protection
- Eavesdropping Detection
- Surveillance Equipment Detection
- Electronic Surveillance Detection
Technical Specifications – OSCOR Green 24 GHz Spectrum Analyzer
| Specification | Details |
|---|---|
| Model | OSCOR Green 24 GHz |
| Device Type | Portable Spectrum Analyzer / TSCM Receiver |
| Frequency Range | 10 kHz – 24 GHz |
| Display | Integrated Color LCD Display |
| Demodulation Modes | AM, FM, Wideband FM |
| Signal Analysis | Real-time Spectrum Analysis, Waterfall Display, Signal Strength Monitoring |
| Audio Output | Built-in Speaker and Headphone Output |
| Power Source | Rechargeable Internal Battery / AC Adapter |
| Battery Runtime | Approx. 3–4 hours |
| Data Storage | Internal Memory / External Storage Support |
| Connectivity | USB Interface |
| Application | Technical Surveillance Countermeasures (TSCM), RF Signal Detection, Security Sweeps |
| Portability | Handheld / Field Deployable |
| Condition | Used – Tested and Fully Functional |
