SciAps X 550 Pb XRF Analyzer

★★★★★ (8)
Demo used SciAps X-550 Pb HUD EPA Lead Paint XRF Analyzer (X550 SD Detector) in excellent condition. Complete set included. Fully tested and ready for field use. Ideal for lead paint inspection, compliance testing, and environmental analysis. Reliable, high-performance handheld XRF with proven SciAps accuracy and durability.
$9,000.00 USD / Unit ● In Stock
  • Brand: SciAps
  • Category: Analyzer
  • Condition: UsedCondition
  • Warranty: 6 Months

Request Quote

Fill out the form below and our sales team will contact you within 24 hours.

8 + 2 =

SciAps X-550 Pb HUD EPA Lead Paint XRF Analyzer – Excellent Used Condition – Complete Kit

Offered for sale is a SciAps X-550 Pb HUD EPA Lead Paint XRF Analyzer (X550 SD Detector) in excellent used condition. This professional-grade handheld XRF analyzer is specifically configured for lead paint inspection, meeting EPA and HUD performance requirements for regulatory lead testing applications.

This unit has been well maintained, fully operational, and comes as a complete turnkey inspection kit, ready for immediate field deployment. The analyzer features SciAps’ high-performance Silicon Drift Detector (SDD), delivering fast measurement times, excellent precision, and low detection limits for lead and other heavy metals.

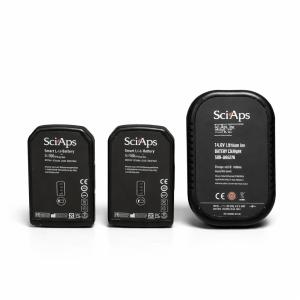

Included in Complete Set:

X-550-SciAps-XRF-Analyzer-Lead-Paint-RCRAX-550-SciAps-XRF-Analyzer-Lead-Paint-RCRA-Alloys

Ideal for:

Key Features

Technical Specifications

Parameter Specification
Model SciAps X-550 Pb
Manufacturing Year 2025
Analyzer Type Handheld XRF (X-Ray Fluorescence)
Primary Application Lead Paint Inspection
Regulatory Compliance EPA, HUD Performance Criteria
Detector Type Silicon Drift Detector (SDD)
Display Color Touchscreen
Data Storage Internal + Export via USB/Wireless
Operating System Embedded Industrial OS
Parameter (X-Ray Tube Specifications)  Specification
Tube Type Miniature X-Ray Tube
Target Material Typically Rhodium or Equivalent
Voltage Range Up to ~50 kV
Current Adjustable, Auto Optimized
Beam Geometry Collimated Beam for Surface Analysis

Analytical Performance (Lead Paint)

Specification
Detector Type Silicon Drift Detector
Resolution ~135–160 eV at Mn Kα
Count Rate Capability High Throughput Digital Pulse Processing
Stability Temperature Compensated
Parameter (Physical Specifications) Typical Performance
Measurement Time 1–3 sec screening / longer regulatory modes
Detection Limits Low ppm range depending on substrate
Calibration Modes Factory EPA/HUD Calibrations
Substrate Correction Automatic
Parameter (Environmental Operating Conditions) Specification
Operating Temperature Approx. -10°C to +50°C
Storage Temperature Approx. -20°C to +60°C
Humidity Up to 95% Non-Condensing
